MBS/Z Diaphragm Chuck
MBS/Z Diaphragm Chuck
SKU:DIA-1b3477
Precision MBS/Z Diaphragm Chuck for high-concentricity chucking, ideal for grinding and turning applications.
Regular price
$449.99
Regular price
Sale price
$449.99
Unit price
per
Initiate Order
MBS/Z Diaphragm Chuck
$449.99
Quantity: 1
Claim Your Seller Account
MBS/Z Diaphragm Chuck
$449.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

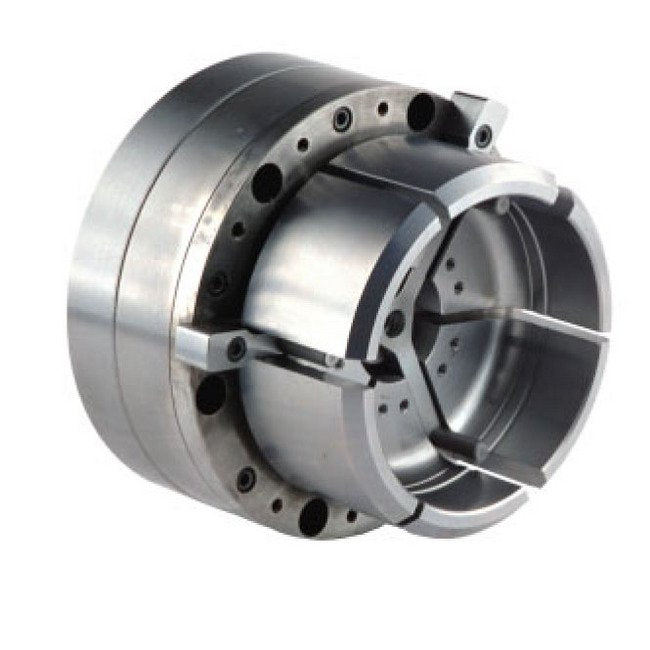

The MBS/Z Diaphragm Chuck offers precision chucking solutions for cylindrical grinding, turning, and hard turning applications. Featuring a draw tube operated design, this chuck ensures high concentricity and chucking force. With specifications like a Chuck Size of 4 inches, Repeating Accuracy of .0001 inches, and a Max rpm of 7,000, it is designed to meet the requirements of demanding workpieces. Equipped with 6 jaws and a Max Jaw Force of 8,655 lbf, this chuck is ideal for high-speed machining. The MBS/Z Diaphragm Chuck is a reliable choice for industrial settings requiring efficiency and accuracy.
Product Specifications

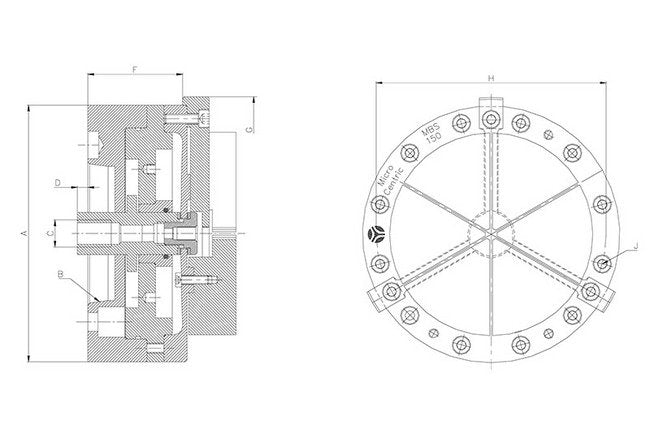

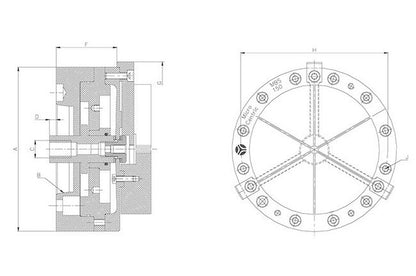

Specifications A Dimension
4.02 in | 102.1 mm
Specifications B Dimension
A2-4
Specifications Chuck Size
4 in | 102 mm
Specifications C Dimension
M16
Specifications D Dimension
.314 in | 8.0 mm
Specifications F Dimension
2.36 in | 60 mm
Specifications G Dimension
4.33 in | 110 mm
Specifications H Dimension
3.500 in | 88.9 mm
Specifications Item No
41 100 016
Specifications Jaw Stroke
.063 in | 1.5 mm
Specifications J Dimension
M5
Specifications Max Jaw Force
8,655 lbf | 2,940 kgf
Specifications Max Rpm
7,000
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
6.9 lb | 3.1 kg
Standard Equipment Available Standard Equipment
ASS-100, AAS Part Stop Spider | MMR-100-6, MMR Diaphragms | SMR-100-25S, SMR Blank Top Jaws | SMR-100-38S, SMR Blank Top Jaws | SMR-100-50S, SMR Blank Top Jaws
