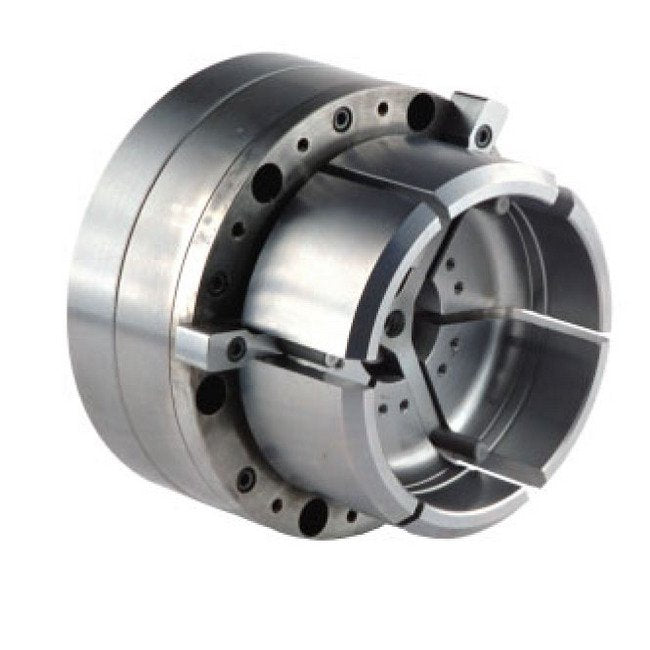

The MBS/Z Draw Bar Diaphragm Chucks feature a versatile design for OD and ID chucking in cylindrical grinding, turning, and hard turning applications. With a chuck size of 8 inches and high repeatability accuracy of .0001 inches, these chucks are ideal for workpieces requiring high concentricity and applications demanding high chucking force and spindle speeds. Their robust construction, with six jaws and a max jaw force of 15,595 lbf, ensures reliable performance in demanding machining operations.
Product Specifications

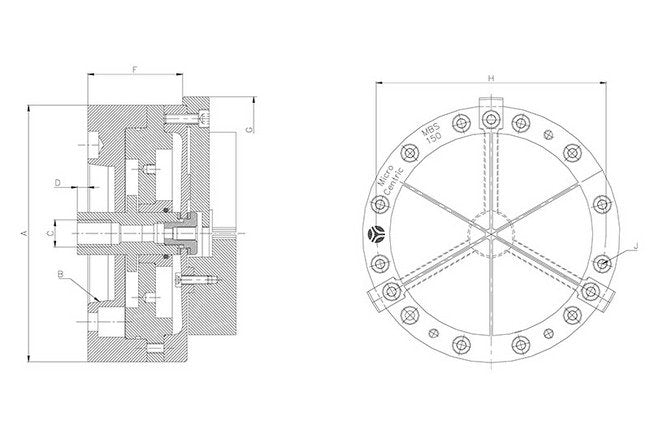

Specifications A Dimension
8.03 in | 204 mm
Specifications B Dimension
A2-6
Specifications Chuck Size
8 in | 204 mm
Specifications C Dimension
M16
Specifications D Dimension
.284 in | 7.2 mm
Specifications F Dimension
2.46 in | 62.4 mm
Specifications G Dimension
8.43 in | 214.1 mm
Specifications H Dimension
7.200 in | 182.9 mm
Specifications Item No
41 200 004
Specifications Jaw Stroke
.063 in | 1.5 mm
Specifications J Dimension
M10
Specifications Max Jaw Force
15,595 lbf | 7,090 kgf
Specifications Max Rpm
4,500
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
28.7 lb | 13.0 kg
Standard Equipment Available Standard Equipment
ASS-200, AAS Part Stop Spider | MMR-200-6, MMR Diaphragms | SMR-200-38S, SMR Blank Top Jaws | SMR-200-50S, SMR Blank Top Jaws | SMR-200-75S, SMR Blank Top Jaws
