MBS/Z Draw Bar Diaphragm Chucks 6in
MBS/Z Draw Bar Diaphragm Chucks 6in
SKU:DIA-71c9b6
Premium Diaphragm Chuck for precise OD and ID chucking in high-speed machining. Ideal for cylindrical grinding, turning, and hard turning applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
MBS/Z Draw Bar Diaphragm Chucks 6in
$899.99
Quantity: 1
Claim Your Seller Account
MBS/Z Draw Bar Diaphragm Chucks 6in
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

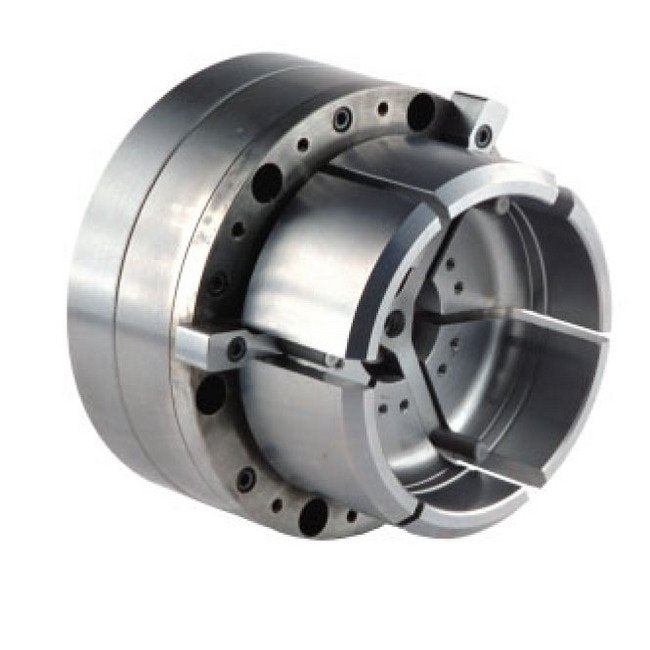

The MBS/Z Draw Bar Operated Diaphragm Chucks offer precision and versatility for OD and ID chucking in cylindrical grinding, turning, and hard turning applications. Featuring a chuck size of 6 inches and a maximum RPM of 6,000, these chucks ensure high concentricity and chucking force. With a jaw stroke of 1.5mm and a repeating accuracy of 0.0001 inches, they are designed for high-speed and high-force machining operations. The MBS/Z chucks are compatible with hydraulic or pneumatic cylinder actuation, making them ideal for workpieces that demand superior machining precision and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

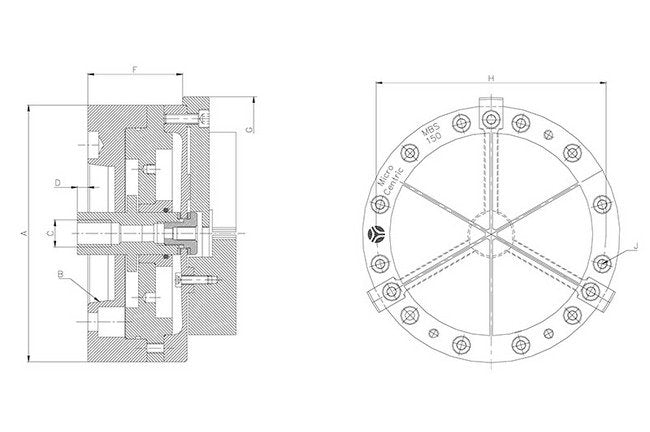

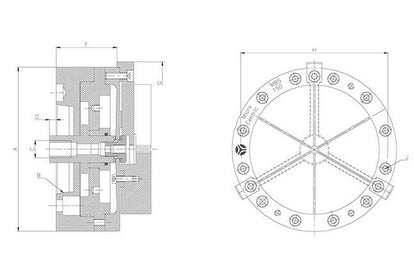

Specifications A Dimension
6.98 in | 152 mm
Specifications B Dimension
A2-5
Specifications Chuck Size
6 in | 152 mm
Specifications C Dimension
M16
Specifications D Dimension
-.244 in | -6.19 mm
Specifications F Dimension
2.21 in | 56.1 mm
Specifications G Dimension
6.38 in | 162.1 mm
Specifications H Dimension
5.350 in | 135.9 mm
Specifications Item No
41 150 002
Specifications Jaw Stroke
.063 in | 1.5 mm
Specifications J Dimension
M6
Specifications Max Jaw Force
12,210 lbf | 5,550 kgf
Specifications Max Rpm
6,000
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
14.5 lb | 6.6 kg
Standard Equipment Available Standard Equipment
ASS-150, AAS Part Stop Spider | MMR-150-6, MMR Diaphragms | SMR-150-25S, SMR Blank Top Jaws | SMR-150-38S, SMR Blank Top Jaws | SMR-150-50S, SMR Blank Top Jaws | SMR-150-75S, SMR Blank Top Jaws
