MBS/Z Draw Bar Operated Diaphragm Chuck - 10 inches
MBS/Z Draw Bar Operated Diaphragm Chuck - 10 inches
SKU:DIA-4a4121
Enhance precision and efficiency with the MBS/Z Draw Bar Operated Diaphragm Chuck - 10 inches, perfect for high-speed machining applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
MBS/Z Draw Bar Operated Diaphragm Chuck - 10 inches
$1,899.99
Quantity: 1
Claim Your Seller Account
MBS/Z Draw Bar Operated Diaphragm Chuck - 10 inches
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

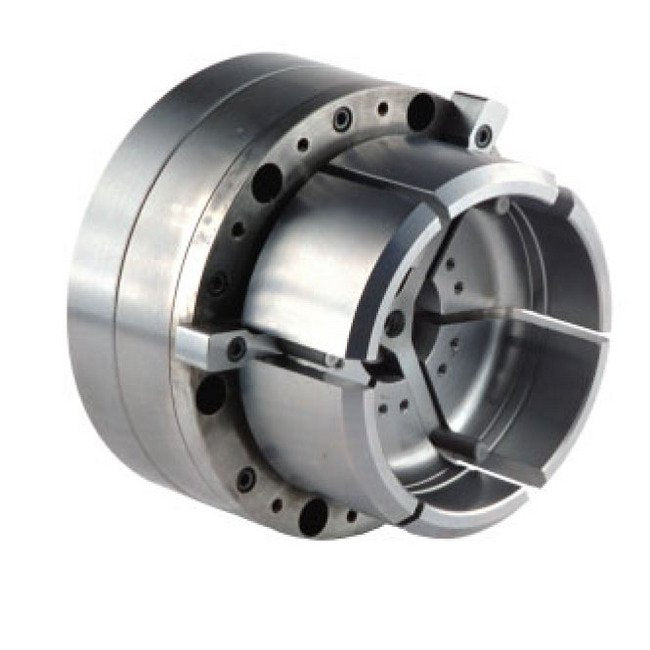

The MBS/Z Draw Bar Operated Diaphragm Chuck is designed for precise OD and ID chucking in cylindrical grinding, turning, and hard turning applications. With a chuck size of 10 inches and a repeating accuracy of .0001 inches, this chuck ensures high concentricity for workpieces. It features 6 jaws with a jaw stroke of .120 inches and a max jaw force of 43,110 lbf. Operating at a max rpm of 3,500, this chuck is ideal for applications requiring high chucking force and spindle speeds. It comes with standard equipment including ASS-300, AAS Part Stop Spider, MMR-300-6 Diaphragms, and various SMR Blank Top Jaws.
Product Specifications

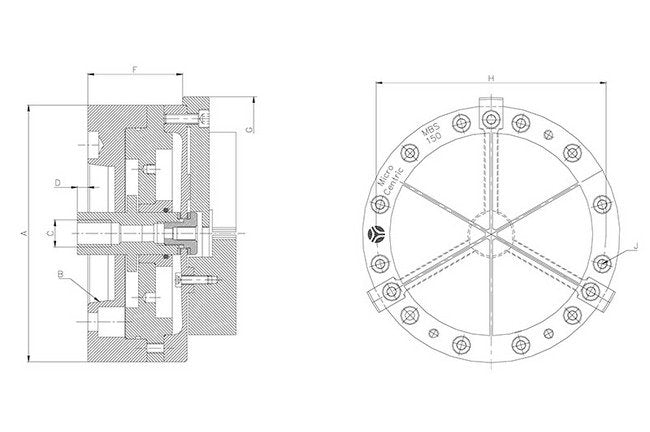

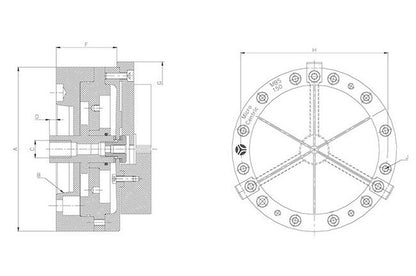

Specifications A Dimension
11.57 in | 293.9 mm
Specifications B Dimension
A2-11
Specifications Chuck Size
10 in | 294 mm
Specifications C Dimension
M20
Specifications D Dimension
.829 in | 21.0 mm
Specifications F Dimension
4.19 in | 105.9 mm
Specifications G Dimension
12.05 in | 306 mm
Specifications H Dimension
10.050 in | 266.7 mm
Specifications Item No
41 300 002
Specifications Jaw Stroke
.120 in | 2 mm
Specifications J Dimension
M10
Specifications Max Jaw Force
43,110 lbf | 19,600 kgf
Specifications Max Rpm
3,500
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
109.4 lb | 49.7 kg
Standard Equipment Available Standard Equipment
ASS-300, AAS Part Stop Spider | MMR-300-6, MMR Diaphragms | SMR-300-38S, SMR Blank Top Jaws | SMR-300-50S, SMR Blank Top Jaws | SMR-300-75S, SMR Blank Top Jaws
