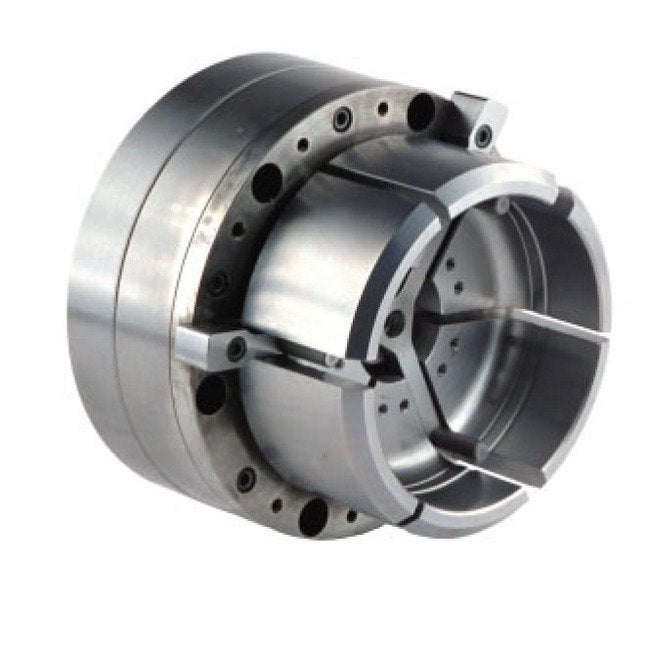

MBS/Z Draw Bar Operated Diaphragm Chucks - 5-inch Chuck Size
MBS/Z Draw Bar Operated Diaphragm Chucks - 5-inch Chuck Size
SKU:DIA-18de0d
Precision diaphragm chuck for high-speed, high-force applications. Ideal for cylindrical grinding and turning. Chuck Size: 5 inches.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
MBS/Z Draw Bar Operated Diaphragm Chucks - 5-inch Chuck Size
$549.99
Quantity: 1
Claim Your Seller Account
MBS/Z Draw Bar Operated Diaphragm Chucks - 5-inch Chuck Size
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MBS/Z Draw Bar Operated Diaphragm Chuck features a design for OD and ID chucking in cylindrical grinding, turning, and hard turning applications. With a chuck size of 5 inches, this chuck offers high concentricity, chucking force up to 11,420 lbf, and a max speed of 6,500 rpm. Ideal for workpieces requiring precision and high spindle speeds, this chuck ensures .0001-inch repeating accuracy and comes equipped with 6 jaws for secure gripping.
Product Specifications

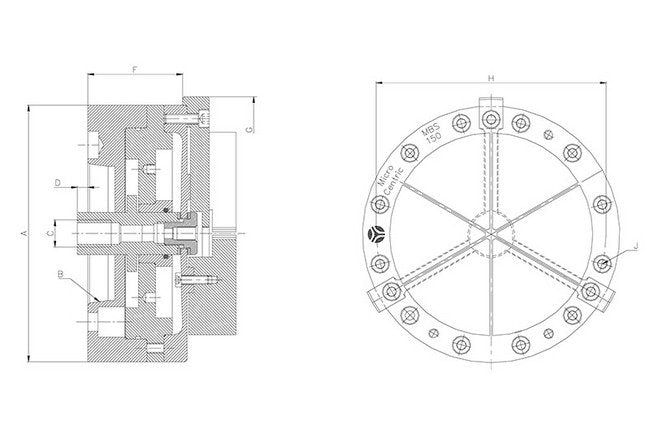

Specifications A Dimension
6.00 in | 127 mm
Specifications B Dimension
A2-4
Specifications Chuck Size
5 in | 127 mm
Specifications C Dimension
M16
Specifications D Dimension
-.126 in | -3.2 mm
Specifications F Dimension
2.32 in | 58.9 mm
Specifications G Dimension
5.35 in | 135.9 mm
Specifications H Dimension
4.406 in | 112 mm
Specifications Item No
41 125 001
Specifications Jaw Stroke
.063 in | 1.5 mm
Specifications J Dimension
M6
Specifications Max Jaw Force
11,420 lbf | 5,190 kgf
Specifications Max Rpm
6,500
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
10.6 lb | 4.8 kg
Standard Equipment Available Standard Equipment
ASS-125, AAS Part Stop Spider | MMR-125-6, MMR Diaphragms | SMR-125-25S, SMR Blank Top Jaws | SMR-125-38S, SMR Blank Top Jaws | SMR-125-50S, SMR Blank Top Jaws
