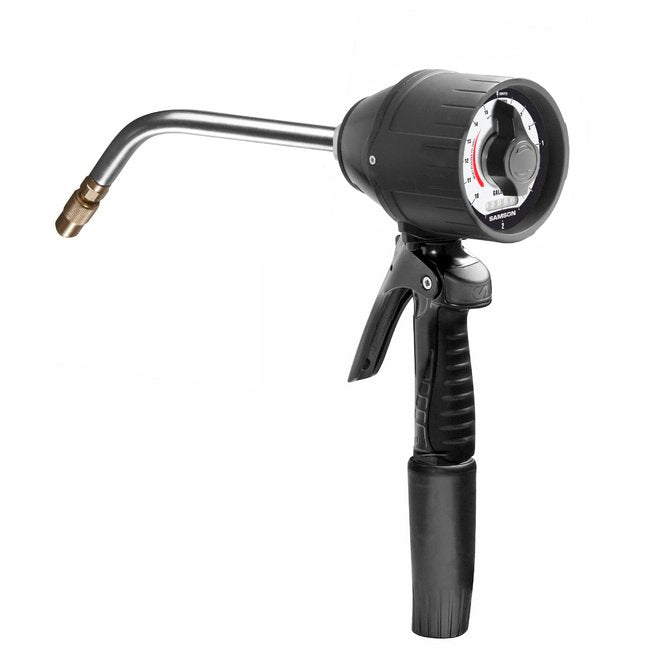

MC8 Series 1/4in Mechanical Dispense Valve

Name: MC8 Series 1/4in Mechanical Dispense Valve
Brand: Northern Lights Industrial Supply
SKU: SAM-2c629e
Price: 189.99 USD
Availability: OutOfStock

SKU:SAM-2c629e

Enhance precision fluid dispensing with the MC8 Series 1/4in Mechanical Dispense Valve. Designed for rugged applications with 1450 psi max pressure and 8 gpm flow rate.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your fluid dispensing efficiency with the MC8 Series 1/4in Mechanical Dispense Valve. This valve, designed for rugged application environments, allows precise measurement of lubricants and antifreeze solutions. With a maximum working pressure of 1450 psi and a high flow rate of 8 gpm, this valve ensures accurate dispensing. It features a 60-degree angle, 1/4in turn size, and is compatible with various fluids including ATF, hydraulic oil, and gear oil. Ideal for car dealerships, fleet service, and construction applications.

Product Specifications

Application Application

Specifications Accuracy

0.65 %

Specifications Angle

60 Âº

Specifications Fluid Handled

Antifreeze Solutions | Automatic Transmission Fluid (ATF) | Gear Oil | Hydraulic Oil and Fluids | Synthetic and Mineral Based Oil

Specifications Fluid Inlet Thread Size

1/2 in

Specifications Fluid Inlet Thread Type

National Pipe Taper Fuel (NPTF)

Specifications Fluid Outlet Thread Size

1/2 in

Specifications Fluid Outlet Thread Type

National Pipe Taper Fuel (NPTF)

Specifications Maximum Free Flow Rate

8 gpm | 30 L/min

Specifications Maximum Working Pressure

1,450 psi | 100 bar

Specifications Turn Size

1/4 in

Specifications Wetted Materials

MC8 Series 1/4in Mechanical Dispense Valve
