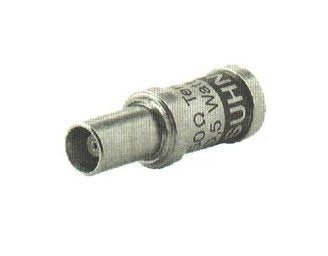

MCX 50 Ohm Female Jack Terminations
MCX 50 Ohm Female Jack Terminations
SKU:MCX-a797cf
High-performance MCX 50 Ohm Female Jack Terminations for precision RF signal termination in demanding applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
MCX 50 Ohm Female Jack Terminations
$34.99
Quantity: 1
Claim Your Seller Account
MCX 50 Ohm Female Jack Terminations
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX 50 Ohm Female Jack Terminations are precision-engineered for reliable RF signal termination in high-frequency applications. With an impedance of 50 Ohms and a frequency range of DC to 6 GHz, these terminations ensure optimal signal integrity. Featuring high RF leakage suppression, dielectric withstanding voltage exceeding 750V, and durable construction with PTFE or PFA insulator material, these terminations meet stringent institutional procurement standards. Ideal for aerospace, defense, telecom, and research institutions.
Product Specifications
Specifications Body Material
Brass
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight | straight, bulkhead
Specifications Connection
female
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
single
Specifications Pin Contact Material
Brass
Specifications Plating Body
gold
Specifications Power Watts
0.5
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Vswr Dc 2 Ghz
1.2
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
