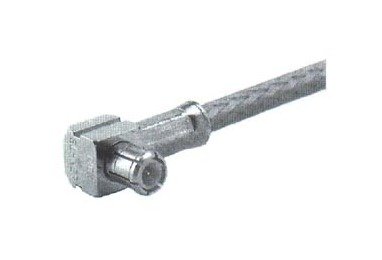

MCX 50 Ohm Right Angle Cable Plug (Male)
MCX 50 Ohm Right Angle Cable Plug (Male)
SKU:MCX-e5196f
High-performance MCX 50 Ohm Right Angle Cable Plug for reliable signal transmission in diverse settings.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
MCX 50 Ohm Right Angle Cable Plug (Male)
$39.99
Quantity: 1
Claim Your Seller Account
MCX 50 Ohm Right Angle Cable Plug (Male)
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience reliable signal transmission with our MCX 50 Ohm Right Angle Cable Plug. Designed for optimal performance, this connector boasts high durability, low contact resistance, and a wide temperature range. Crafted with quality materials like brass, beryllium copper, and PTFE insulator, it meets stringent industry standards, ensuring reliable connections in various applications.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
U4
Specifications Cable Type
flexible
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
gold
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
