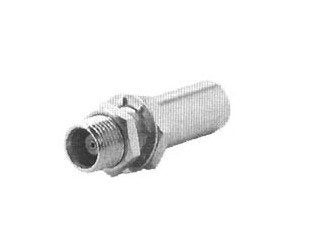

MCX 50 Ohm Straight Bulkhead Adaptor (Female-Female)
MCX 50 Ohm Straight Bulkhead Adaptor (Female-Female)
SKU:MCX-e5fb48
Enhance connectivity with our MCX 50 Ohm Straight Bulkhead Adaptor for reliable performance. Gold-plated, high RF leakage protection, and durable brass construction.
Regular price
$22.99
Regular price
Sale price
$22.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.



Upgrade your connectivity with the MCX 50 Ohm Straight Bulkhead Adaptor. Designed for precision, this adaptor features gold-plated connectors, high RF leakage protection, and a durable brass construction. With a wide frequency range, low VSWR, and extensive durability, this adaptor ensures reliable performance in diverse environments. Compliant with federal procurement standards and industry certifications, it's ideal for government and institutional applications.
Product Specifications
Specifications Body Material
Brass
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight, bulkhead
Specifications Connection
female
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Mounting Hole
ML89
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
single
Specifications Pin Contact Material
Brass
Specifications Plating Body
gold
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Vswr 15 6 Ghz
1.22
Specifications Vswr Dc 15 Ghz
1.06
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
