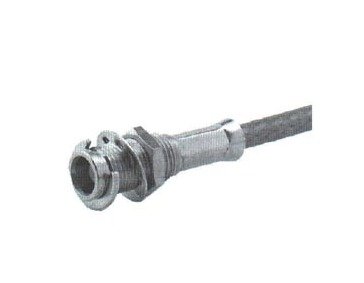

MCX 50 Ohm Straight Bulkhead Cable Jack (Female)
MCX 50 Ohm Straight Bulkhead Cable Jack (Female)
SKU:MCX-08b746
High-performance MCX 50 Ohm Straight Bulkhead Cable Jack (Female) for reliable RF signal transmission in institutional applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
MCX 50 Ohm Straight Bulkhead Cable Jack (Female)
$24.99
Quantity: 1
Claim Your Seller Account
MCX 50 Ohm Straight Bulkhead Cable Jack (Female)
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX 50 Ohm Straight Bulkhead Cable Jack (Female) is engineered to deliver optimal performance in RF applications. With an impedance of 50 Ohms and a frequency range up to 6GHz, this connector ensures reliable signal transmission. Featuring high RF leakage protection, superior contact resistance, and durable construction with brass and beryllium copper materials, it meets rigorous industry standards. The PTFE or PFA insulator and gold-plated body enhance conductivity and longevity. Ideal for institutional and government applications requiring precision and durability.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
U4
Specifications Cable Type
flexible
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight bulkhead
Specifications Connection
female
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
gold
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
