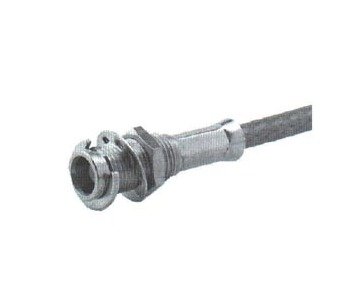

MCX 50 Ohm Straight Bulkhead Cable Jack (Female)
MCX 50 Ohm Straight Bulkhead Cable Jack (Female)
SKU:MCX-805c42
High-performance MCX 50 Ohm Straight Bulkhead Cable Jack (Female) for reliable signal transmission in demanding environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MCX 50 Ohm Straight Bulkhead Cable Jack (Female)
$29.99
Quantity: 1
Claim Your Seller Account
MCX 50 Ohm Straight Bulkhead Cable Jack (Female)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX 50 Ohm Straight Bulkhead Cable Jack (Female) is a high-performance connector suitable for a wide range of applications. With an impedance of 50 Ohms and exceptional RF leakage suppression, this connector ensures reliable signal transmission. It features a durable construction with materials like brass, beryllium copper, and PTFE insulator, providing excellent electrical properties and a temperature range of -67 to 311 degrees F. Meeting rigorous durability standards with over 500 matings and various compliance certifications, this connector guarantees long-term stability and performance in demanding environments.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
U1
Specifications Cable Type
flexible
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight bulkhead
Specifications Connection
female
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
