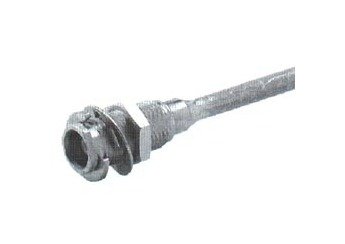

MCX 50 Ohm Straight Bulkhead Cable Jack (Female)
MCX 50 Ohm Straight Bulkhead Cable Jack (Female)
SKU:MCX-2931e7
High-performance MCX 50 Ohm Straight Bulkhead Cable Jack (Female) for secure RF connections in demanding environments.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
MCX 50 Ohm Straight Bulkhead Cable Jack (Female)
$24.99
Quantity: 1
Claim Your Seller Account
MCX 50 Ohm Straight Bulkhead Cable Jack (Female)
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX 50 Ohm Straight Bulkhead Cable Jack (Female) is a high-performance connector designed for secure RF connections in demanding environments. With an impedance of 50 ohms, this connector ensures low RF leakage, high durability with over 500 matings, and wide temperature range compatibility from -67 to 311 degrees Fahrenheit. Crafted from premium materials including brass, beryllium copper, and PTFE or PFA insulators, it meets stringent industry standards for reliability and performance. Ideal for use in applications requiring reliable RF connections and resilience in extreme conditions.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
Y2
Specifications Cable Type
Semi-rigid, SUCOFORM and MULTIFLEX
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight bulkhead
Specifications Connection
female
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
single
Specifications Pin Contact Material
Brass
Specifications Plating Body
gold
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
