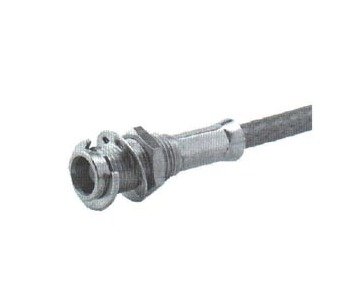

MCX 50 Ohm Straight Bulkhead Female Cable Jack
MCX 50 Ohm Straight Bulkhead Female Cable Jack
SKU:MCX-da8d47
High-quality MCX 50 Ohm Straight Bulkhead Female Cable Jack for reliable RF signal transmission in demanding environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MCX 50 Ohm Straight Bulkhead Female Cable Jack
$29.99
Quantity: 1
Claim Your Seller Account
MCX 50 Ohm Straight Bulkhead Female Cable Jack
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX 50 Ohm Straight Bulkhead Female Cable Jack is a high-quality connector designed for reliable RF signal transmission. With an impedance of 50 Ohms and a frequency range of DC to 6GHz, this connector ensures low RF leakage, high durability with over 500 matings, and a wide temperature range from -67 to 311 degrees F. Built with durable materials like brass, beryllium copper, and PTFE insulator, it meets stringent industry standards for performance and longevity. Ideal for use in demanding environments requiring secure connections and consistent signal integrity.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
U4
Specifications Cable Type
flexible
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight bulkhead
Specifications Connection
female
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
gold
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
