MCX 50 Ohm Straight Cable Jack (Female) - Brass & Beryllium Copper

Name: MCX 50 Ohm Straight Cable Jack (Female) - Brass & Beryllium Copper
Brand: C. W. Swift & Associates, Inc.
SKU: MCX-a9ad90
Price: 29.99 USD
Availability: OutOfStock

SKU:MCX-a9ad90

High-performance MCX 50 Ohm Straight Cable Jack for reliable RF signal transmission in demanding environments.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

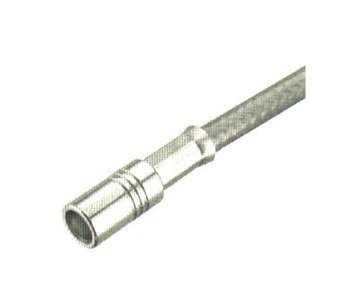

The MCX 50 Ohm Straight Cable Jack is a high-performance connector designed for stringent RF applications. With an impedance of 50 Ohms and a frequency range up to 6 GHz, this connector ensures reliable signal transmission. Featuring durable brass and beryllium copper construction, it offers RF leakage of >60dB and >70dB for flexible and semi-rigid cables respectively. Meeting rigorous industry standards, this connector guarantees a high mating cycle durability of over 500 connections. Suitable for a temperature range of -67 to 311 degrees F, it is ideal for demanding environments.

Product Specifications

Specifications Body Material

Brass

Specifications Cable Group

Specifications Cable Type

flexible

Specifications Centre Contact Resistance M Ohms

Specifications Configuration

straight bulkhead

Specifications Connection

female

Specifications Connector Series

MCX

Specifications Contact Captivation Lbs

>2.3

Specifications Crimp Ferrule Material

Copper

Specifications Dielectic Withstanding Voltage Sea Level V Rms

>750

Specifications Disengagement Force Lbs

1.8 to 4.5

Specifications Durability Matings

>500

Specifications Engagement Force Lbs

<5.6

Specifications Frequency Ghz

DC...6

Specifications Impedance Ohms

Specifications Insulation Resistance M Ohms

>100000

Specifications Insulator Material

PTFE or PFA

Specifications Outer Contacts Jack

Brass

Specifications Outer Contacts Plug

Beryllium copper, hardened

Specifications Outside Contact Resistance M Ohms

Specifications Packaging

bulk 100 pcs.

Specifications Pin Contact Material

Brass

Specifications Plating Body

gold

Specifications Rf Leakage Connectors For Flexible Cables Db

>60

Specifications Rf Leakage Connectors For Semi Rigid Cables Db

>70

Specifications Socket Contact Material

Beryllium copper, hardened

Specifications Temperature Range Degrees F

-67 to 311

Specifications Working Voltage 70000 Ft V Rms

>42

Specifications Working Voltage Sea Level V Rms

>170
