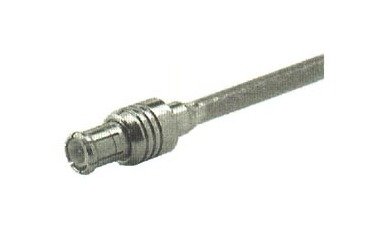

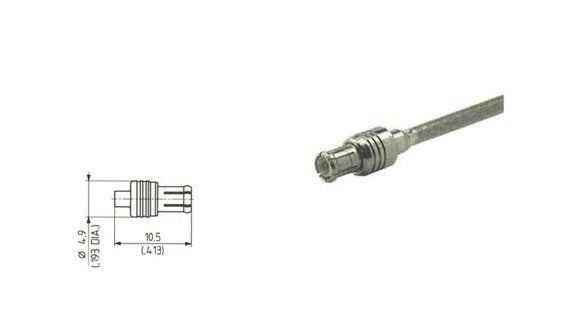

MCX 50 Ohm Straight Cable Plug (Male)
MCX 50 Ohm Straight Cable Plug (Male)
SKU:MCX-ee8774
High-performance MCX 50 Ohm Straight Cable Plug (Male) for reliable signal transmission in demanding environments.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
MCX 50 Ohm Straight Cable Plug (Male)
$12.99
Quantity: 1
Claim Your Seller Account
MCX 50 Ohm Straight Cable Plug (Male)
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX 50 Ohm Straight Cable Plug (Male) is a high-performance connector designed for superior connectivity in demanding environments. With an impedance of 50 ohms and frequency range from DC to 6 GHz, this plug ensures reliable signal transmission. Featuring RF leakage ratings exceeding 60 dB for flexible cables and over 70 dB for semi-rigid cables, it guarantees minimal interference. Constructed with durable brass and beryllium copper materials, this plug offers exceptional durability with over 500 matings. It complies with stringent industry standards, making it ideal for government and institutional procurement needs.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
Y2
Specifications Cable Type
Semi-rigid, SUCOFORM and MULTIFLEX
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
single
Specifications Pin Contact Material
Brass
Specifications Plating Body
SUCOPRO
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
