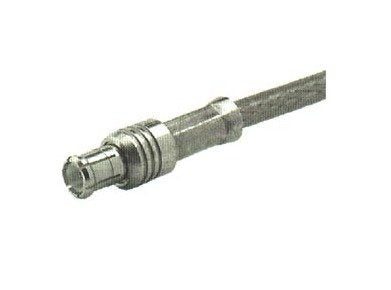

MCX 50 Ohm Straight Cable Plug Male
MCX 50 Ohm Straight Cable Plug Male
SKU:MCX-73a2c7
High-performance MCX 50 Ohm Straight Cable Plug for reliable and durable connections in demanding applications.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
MCX 50 Ohm Straight Cable Plug Male
$12.99
Quantity: 1
Claim Your Seller Account
MCX 50 Ohm Straight Cable Plug Male
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX 50 Ohm Straight Cable Plug is a high-performance connector designed for reliability and durability. With an impedance of 50 Ohms and a frequency range up to 6GHz, this plug ensures secure connections with minimal RF leakage. Built to withstand extreme conditions, it offers superior insulation resistance, low contact resistance, and high durability with over 500 matings. Made from premium materials like brass, beryllium copper, and PTFE or PFA insulator, this connector meets the demands of rigorous applications. Ideal for flexible cables, this male straight plug is a top choice for industries requiring precision and quality.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
U2
Specifications Cable Type
flexible
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
gold
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
