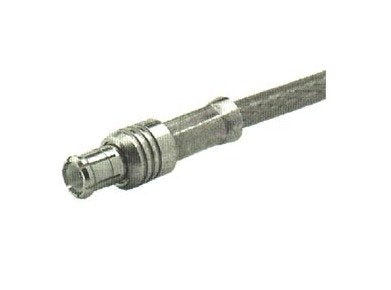

MCX 50 Ohm Straight Cable Plug, Male Connector
MCX 50 Ohm Straight Cable Plug, Male Connector
SKU:MCX-abe92b
Get reliable RF signal transmission with the MCX 50 Ohm Straight Cable Plug, ideal for demanding applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MCX 50 Ohm Straight Cable Plug, Male Connector
$29.99
Quantity: 1
Claim Your Seller Account
MCX 50 Ohm Straight Cable Plug, Male Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX 50 Ohm Straight Cable Plug is a precision-engineered connector designed for seamless RF signal transmission. With an impedance of 50 Ohms and a frequency range up to 6GHz, this plug ensures reliable performance in demanding applications. Crafted from high-quality materials like brass, beryllium copper, and PTFE/PFA insulator, it offers exceptional durability and signal integrity. Meeting stringent federal procurement standards and boasting compliance with FAR regulations, this MCX connector is ideal for government and institutional use.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
U1
Specifications Cable Type
flexible
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
