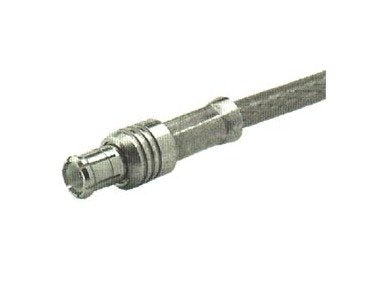

MCX 50 Ohm Straight Cable Plugs (Male)
MCX 50 Ohm Straight Cable Plugs (Male)
SKU:MCX-f05f78
Premium MCX 50 Ohm Straight Cable Plugs (Male) for reliable RF signal transmission in high-frequency applications. Crafted for durability and precision.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MCX 50 Ohm Straight Cable Plugs (Male)
$49.99
Quantity: 1
Claim Your Seller Account
MCX 50 Ohm Straight Cable Plugs (Male)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX 50 Ohm Straight Cable Plugs (Male) are precision-engineered for seamless RF signal transmission in demanding environments. With an impedance of 50 Ohms and a working voltage exceeding 170 V rms, these connectors ensure reliable performance in a frequency range from DC to 6 GHz. Crafted from high-quality materials like brass, beryllium copper, and PTFE/PFA insulators, these plugs offer exceptional durability, withstanding extreme temperatures from -67 to 311°F. Ideal for critical applications requiring low RF leakage and high insulation resistance, they are designed to meet the stringent requirements of government and institutional procurements.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
U2
Specifications Cable Type
flexible
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
