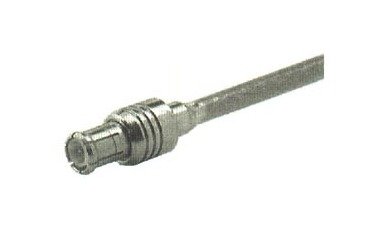

MCX 50 Ohm Straight Cable Plugs (Male) - Pack of 100
MCX 50 Ohm Straight Cable Plugs (Male) - Pack of 100
SKU:MCX-fe6046
High-performance MCX 50 Ohm Straight Cable Plugs (Male) for reliable signal transmission in industrial applications.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
MCX 50 Ohm Straight Cable Plugs (Male) - Pack of 100
$279.99
Quantity: 1
Claim Your Seller Account
MCX 50 Ohm Straight Cable Plugs (Male) - Pack of 100
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

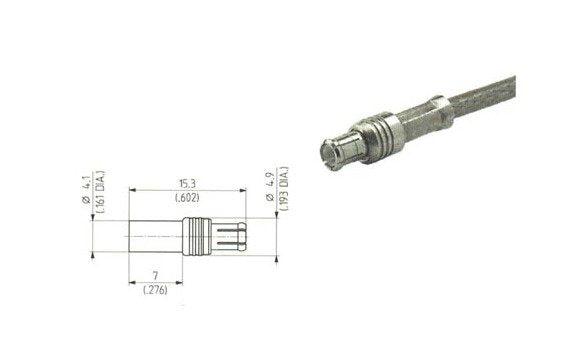

The MCX 50 Ohm Straight Cable Plugs (Male) are precision-engineered connectors designed for seamless signal transmission. With an impedance of 50 Ohms and a frequency range from DC to 6 GHz, these cable plugs ensure reliable performance in demanding environments. Featuring RF leakage ratings exceeding 60dB and 70dB for flexible and semi-rigid cables respectively, these plugs guarantee superior signal integrity. Constructed with durable materials like brass, beryllium copper, and PTFE/PFA insulators, these connectors offer exceptional durability, withstanding voltages exceeding 750V. Meeting stringent durability standards with over 500 matings and temperature ranges from -67 to 311 degrees F, these cable plugs are ideal for industrial and institutional applications.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
Y3, Y11
Specifications Cable Type
Semi-rigid, SUCOFORM and MULTIFLEX
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
SUCOPRO
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
