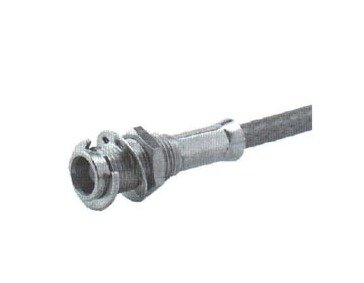

MCX Bulkhead Cable Jacks (Female)
MCX Bulkhead Cable Jacks (Female)
SKU:MCX-1c700f
High-performance MCX bulkhead cable jack designed for high-frequency applications, featuring superior RF leakage control and durable construction.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MCX Bulkhead Cable Jacks (Female)
$29.99
Quantity: 1
Claim Your Seller Account
MCX Bulkhead Cable Jacks (Female)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX Bulkhead Cable Jack (Female) is designed for high-frequency applications with an impedance of 50 ohms and a frequency range of DC to 6 GHz. With superior RF leakage capabilities, durable construction, and a wide temperature range from -67 to 311 degrees F, this straight bulkhead connector ensures reliable performance in diverse environments. Crafted from high-quality materials like brass, beryllium copper, and PTFE/PFA insulator, it offers excellent electrical properties and longevity. Ideal for institutional and government use requiring stringent quality standards.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
U1
Specifications Cable Type
flexible
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight bulkhead
Specifications Connection
female
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
gold
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
