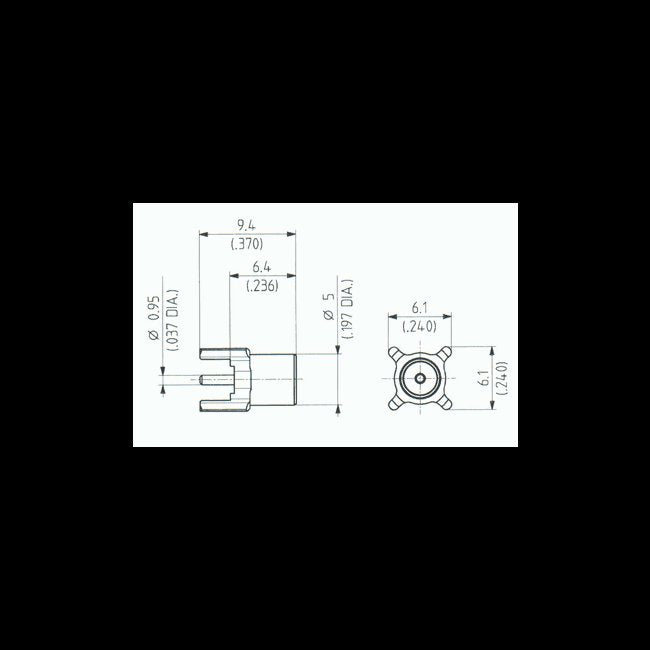

MCX Female Straight PCB Plugs, 50 Ohm, Bulk Pack of 100
MCX Female Straight PCB Plugs, 50 Ohm, Bulk Pack of 100
SKU:MCX-7821d8
Enhance PCB connections with MCX Female Straight Plugs, 50 Ohm, SUCOPRO plated body, reliable signal transmission, and wide temp range.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
MCX Female Straight PCB Plugs, 50 Ohm, Bulk Pack of 100
$129.99
Quantity: 1
Claim Your Seller Account
MCX Female Straight PCB Plugs, 50 Ohm, Bulk Pack of 100
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your PCB connections with the MCX Female Straight PCB Plugs engineered for reliable signal transmission. These connectors feature a SUCOPRO plated body, low impedance of 50 Ohms, <5 m ohms center contact resistance, and >500 durability matings. With a wide temperature range of -67°F to 311°F and compatibility with various cables, these plugs ensure secure connections in demanding environments.
Product Specifications
Specifications Body Material
Brass
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight
Specifications Connection
female
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Grid Inches
.100
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Mount
with standoff
Specifications Mounting Hole
ML 15
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
SUCOPRO
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
