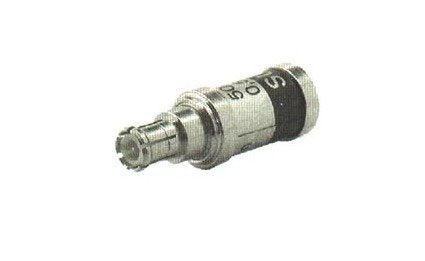

MCX Plug Terminations - Male
MCX Plug Terminations - Male
SKU:MCX-311d81
High-performance MCX Plug Terminations with 50 ohm impedance, up to 6 GHz frequency, and durable construction for reliable signal termination.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MCX Plug Terminations - Male
$29.99
Quantity: 1
Claim Your Seller Account
MCX Plug Terminations - Male
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX Plug Terminations offer precision-engineered 50 ohm impedance for reliable signal termination in MCX connector systems. With a frequency range up to 6 GHz and robust construction featuring gold plating, brass body, and PTFE/PFA insulators, these terminations ensure low RF leakage, high durability with over 500 matings, and superior electrical performance. Ideal for demanding applications, these terminations meet stringent industry standards and are designed for consistent performance in challenging environments.
Product Specifications
Specifications Body Material
Brass
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
single
Specifications Pin Contact Material
Brass
Specifications Plating Body
gold
Specifications Power Watts
0.5
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Vswr Dc 2 Ghz
1.2
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
