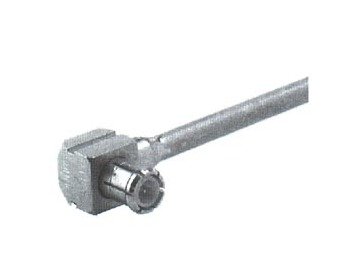

MCX Right Angle Cable Plug (Male)
MCX Right Angle Cable Plug (Male)
SKU:MCX-43b300
High-quality MCX Right Angle Cable Plug (Male) with 50 Ohms impedance, ideal for reliable RF signal transmission up to 6 GHz.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
MCX Right Angle Cable Plug (Male)
$24.99
Quantity: 1
Claim Your Seller Account
MCX Right Angle Cable Plug (Male)
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX Right Angle Cable Plug (Male) is a high-quality connector designed for demanding applications. With an impedance of 50 Ohms and a frequency range up to 6 GHz, this connector ensures reliable RF signal transmission. It features RF leakage ratings exceeding 60 dB for flexible cables and over 70 dB for semi-rigid cables, guaranteeing minimal signal interference. The durable construction, including brass and beryllium copper materials, provides excellent performance in diverse environments. Suitable for cable groups Y3 and Y11, this MCX connector is known for its superior contact resistance, engagement force, and durability, making it a top choice for professionals seeking reliable connectivity solutions.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
Y3, Y11
Specifications Cable Type
flexible
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
gold
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
