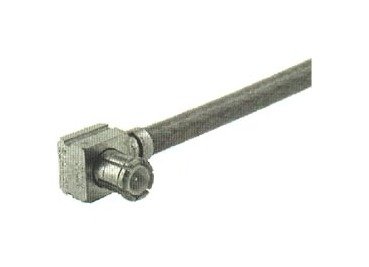

MCX Right Angle Cable Plug (Male)
MCX Right Angle Cable Plug (Male)
SKU:MCX-c30c3d
Premium MCX 50 ohm right angle cable plug for superior RF performance and durability. Frequency up to 6GHz. Ideal for flexible cables.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
MCX Right Angle Cable Plug (Male)
$9.99
Quantity: 1
Claim Your Seller Account
MCX Right Angle Cable Plug (Male)
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX Right Angle Cable Plug (Male) is a high-quality 50 ohm connector designed for superior RF performance in demanding applications. With a wide frequency range of DC to 6GHz, low RF leakage, and robust construction meeting stringent durability standards, this plug ensures reliable signal transmission. Crafted from premium materials like brass, beryllium copper, and PTFE/PFA insulators, it offers exceptional impedance, contact resistance, and dielectric strength. Ideal for flexible cables, this connector series meets industry benchmarks for functionality and longevity.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
U2
Specifications Cable Type
flexible
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
SUCOPRO
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
