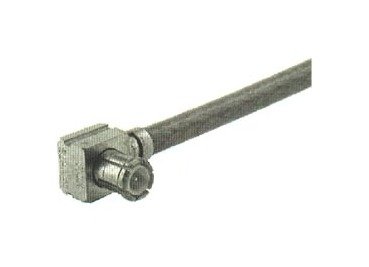

MCX Right Angle Cable Plug (Male)
MCX Right Angle Cable Plug (Male)
SKU:MCX-16432c
Enhance connectivity with our MCX right angle cable plug. High-quality materials, superior performance up to 6GHz, and durable construction ensure reliability and ease of use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MCX Right Angle Cable Plug (Male)
$29.99
Quantity: 1
Claim Your Seller Account
MCX Right Angle Cable Plug (Male)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior connectivity with our MCX right angle cable plug designed for optimal performance. With an impedance of 50 ohms and durable construction using high-quality materials like brass, beryllium copper, and PTFE insulators, this plug ensures reliable transmission up to 6GHz. Meeting stringent industry standards for RF leakage, insulation resistance, and durability, this plug excels in demanding environments while offering ease of installation. Trust in our MCX right angle cable plug for seamless connections and lasting quality.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
U2
Specifications Cable Type
flexible
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
gold
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
