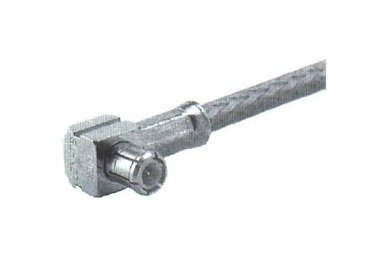

MCX Right Angle Cable Plugs (Male)
MCX Right Angle Cable Plugs (Male)
SKU:MCX-e856e7
Reliable MCX Right Angle Cable Plugs (Male) with 50 Ohms impedance, DC-6GHz frequency, and premium materials for superior connectivity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MCX Right Angle Cable Plugs (Male)
$29.99
Quantity: 1
Claim Your Seller Account
MCX Right Angle Cable Plugs (Male)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX Right Angle Cable Plugs (Male) are precision-engineered connectors designed for seamless RF transmission. With an impedance of 50 Ohms and a frequency range of DC to 6 GHz, these connectors offer reliable performance in diverse applications. Featuring gold-plated body plating, brass body material, and beryllium copper contact materials, these connectors ensure superior conductivity and durability. Meeting stringent industry standards, including FAR compliance factors and DLA standards, these connectors are ideal for government and institutional procurement needs.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
U1
Specifications Cable Type
flexible
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
gold
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
