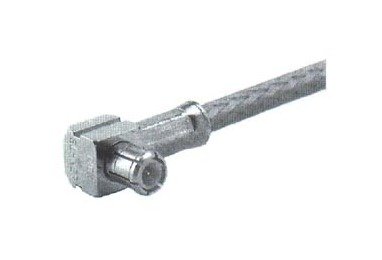

MCX Right Angle Cable Plugs (Male)
MCX Right Angle Cable Plugs (Male)
SKU:MCX-db7f09
High-performance MCX Right Angle Cable Plugs (Male) for precise 6GHz connectivity. Durable design with low RF leakage, ideal for demanding applications.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
MCX Right Angle Cable Plugs (Male)
$12.99
Quantity: 1
Claim Your Seller Account
MCX Right Angle Cable Plugs (Male)
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX Right Angle Cable Plugs (Male) offer unparalleled connectivity with their 50 ohm impedance, durable brass and beryllium copper construction, and PTFE/PFA insulator. Designed for frequencies up to 6GHz, these plugs ensure minimal RF leakage and exceptional performance under extreme conditions. With compliance to stringent industry standards, these connectors guarantee reliability and longevity in demanding applications.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
U1
Specifications Cable Type
flexible
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
