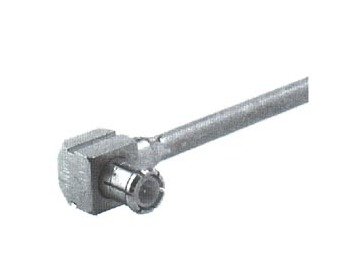

MCX Right Angle Cable Plugs (Male) - 50 Ohm
MCX Right Angle Cable Plugs (Male) - 50 Ohm
SKU:MCX-88f66a
High-performance MCX 50 ohm right angle cable plugs for superior RF connectivity in extreme conditions. Durable construction and low RF leakage ensure reliability in demanding applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MCX Right Angle Cable Plugs (Male) - 50 Ohm
$29.99
Quantity: 1
Claim Your Seller Account
MCX Right Angle Cable Plugs (Male) - 50 Ohm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your RF connectivity with our MCX 50 ohm right angle cable plugs. Designed for superior performance, these connectors offer low RF leakage for both flexible and semi-rigid cables. With durable brass and beryllium copper construction, they ensure reliability in extreme conditions from -67 to 311 degrees F. Meeting high industry standards, these male cable plugs deliver exceptional impedance, insulation resistance, and durability exceeding 500 matings. Perfect for demanding applications where precise RF connections are crucial.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
Y3, Y11
Specifications Cable Type
flexible
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
SUCOPRO
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
