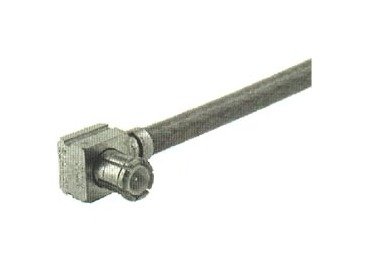

MCX Right Angle Male Cable Plug
MCX Right Angle Male Cable Plug
SKU:MCX-6326b7
High-performance MCX Right Angle Male Cable Plug with 50 Ohm impedance, superior RF leakage control, and durable construction for reliable connectivity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MCX Right Angle Male Cable Plug
$29.99
Quantity: 1
Claim Your Seller Account
MCX Right Angle Male Cable Plug
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX Right Angle Male Cable Plug is a high-performance connector designed for seamless transmission up to 6 GHz, with exceptional impedance of 50 Ohms. Featuring superior RF leakage control, this plug offers reliable connectivity for flexible cables, ensuring outstanding signal integrity. With robust construction using materials like brass, beryllium copper, and PTFE insulator, it delivers excellent durability and performance in diverse environments. Meeting stringent institutional standards, including FAR compliance factors, this connector is ideal for applications requiring precision and reliability.
Product Specifications
Specifications Body Material
Brass
Specifications Cable Group
U2
Specifications Cable Type
flexible
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
