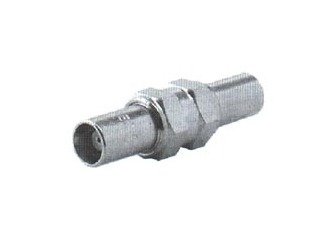

MCX Straight Female Adaptors (50 ohm)
MCX Straight Female Adaptors (50 ohm)
SKU:MCX-547047
High-quality MCX Straight Female Adaptors, 50 ohm impedance, gold-plated connectors, RF leakage >60dB.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MCX Straight Female Adaptors (50 ohm)
$29.99
Quantity: 1
Claim Your Seller Account
MCX Straight Female Adaptors (50 ohm)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX Straight Female Adaptors are designed to meet the stringent 50 ohm impedance requirements, ensuring reliable signal transmission up to 6 GHz. These adaptors feature gold-plated connectors for enhanced conductivity and durability, with RF leakage suppression exceeding 60 dB for flexible cables and over 70 dB for semi-rigid cables. Constructed from high-quality materials like brass, beryllium copper, and hardened contacts, these adaptors offer exceptional performance in varied environments withstanding voltage up to 750V RMS. With compliance to industry standards and a durability rating of over 500 matings, these MCX adaptors are ideal for demanding applications.
Product Specifications
Specifications Body Material
Brass
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight
Specifications Connection
female
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
single
Specifications Pin Contact Material
Brass
Specifications Plating Body
gold
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Vswr 15 6 Ghz
1.22
Specifications Vswr Dc 15 Ghz
1.05
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
