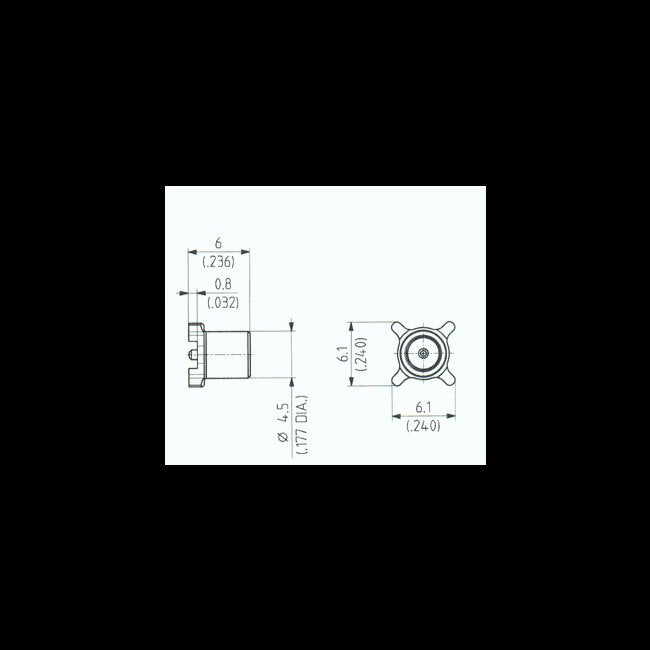

MCX Straight PCB Plugs (Female)
MCX Straight PCB Plugs (Female)
SKU:MCX-577553
High-performance MCX Straight PCB Plugs (Female) for 50 ohm connections, surface mount design, and wide temperature range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MCX Straight PCB Plugs (Female)
$29.99
Quantity: 1
Claim Your Seller Account
MCX Straight PCB Plugs (Female)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX Straight PCB Plugs (Female) offer a reliable 50 ohm connection for high-frequency applications. Designed for surface mount installation, these connectors feature SUCOPRO plating, ensuring high performance and durability. With a wide temperature range from -67 to 311 degrees F, brass and beryllium copper construction, and compliance with stringent RF leakage and voltage standards, these connectors are ideal for demanding RF applications in both commercial and government sectors.
Product Specifications
Specifications Body Material
Brass
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight
Specifications Connection
female
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Mount
surface mount
Specifications Mounting Hole
ML 120
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
tape and reel
Specifications Pin Contact Material
Brass
Specifications Plating Body
SUCOPRO
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
