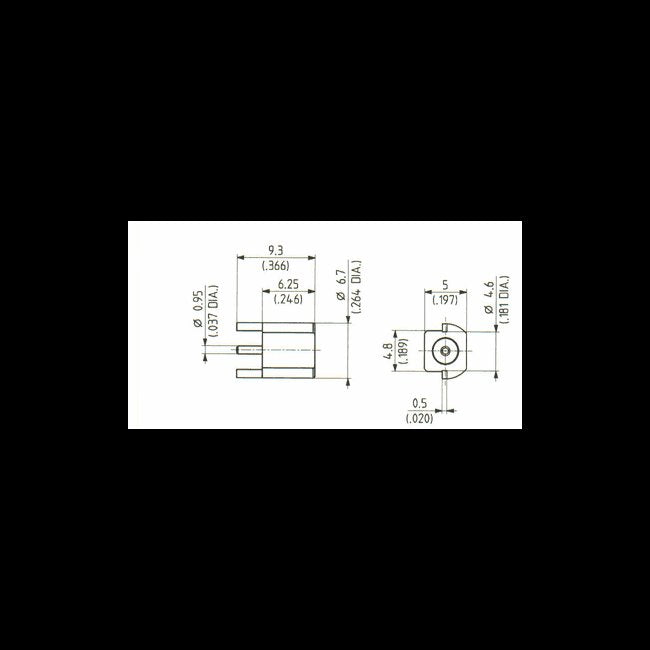

MCX Straight PCB Plugs (Female)
MCX Straight PCB Plugs (Female)
SKU:MCX-0b347e
High-quality MCX Straight PCB Plugs (Female) for reliable and durable RF connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MCX Straight PCB Plugs (Female)
$29.99
Quantity: 1
Claim Your Seller Account
MCX Straight PCB Plugs (Female)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ideal for high-frequency applications, the MCX Straight PCB Plugs (Female) offer a robust gold-plated body for secure connections. With an impedance of 50 Ohms, these connectors ensure reliable performance with RF leakages well above industry standards. Featuring beryllium copper contacts and durable materials, these plugs withstand extreme temperatures and offer more than 500 durable matings. Compliant with federal procurement standards, GSA requirements, and NIST guidelines, these connectors meet the stringent requirements of institutional buyers.
Product Specifications
Specifications Body Material
Brass
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight
Specifications Connection
female
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Mount
surface mount, edge mount
Specifications Mounting Hole
ML 121
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
single
Specifications Pin Contact Material
Brass
Specifications Plating Body
gold
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
