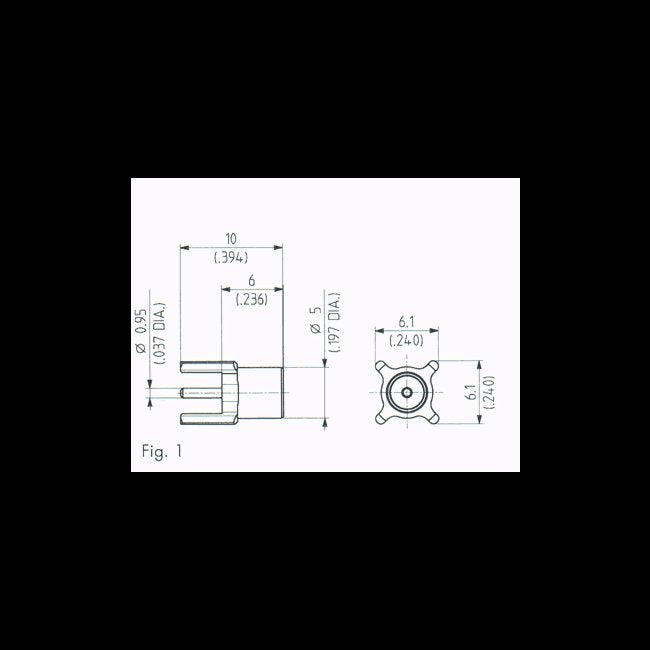

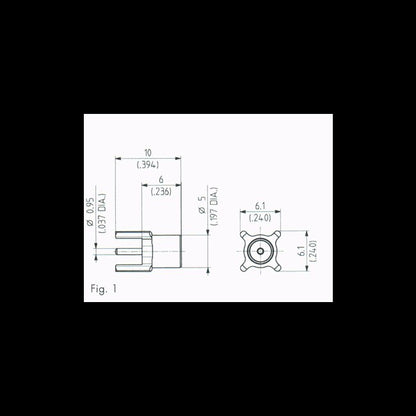

MCX Straight PCB Plugs (Female)
MCX Straight PCB Plugs (Female)
SKU:MCX-5b6b8e
High-performance MCX Straight PCB Plugs (Female) with 50 ohm impedance, SUCOPRO plating, and wide temperature range for reliable connectivity in demanding applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MCX Straight PCB Plugs (Female)
$49.99
Quantity: 1
Claim Your Seller Account
MCX Straight PCB Plugs (Female)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX Straight PCB Plugs (Female) offer superior performance and reliability for critical applications. With a 50 ohm impedance, SUCOPRO plating, and a temperature range from -67 to 311 degrees F, these connectors ensure seamless connectivity. Meeting industry-leading standards for durability, contact resistance, and working voltage, these connectors are ideal for demanding environments.
Product Specifications
Specifications Body Material
Brass
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight
Specifications Connection
female
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Grid Inches
.100
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Mount
without standoff
Specifications Mounting Hole
ML 15
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Brass
Specifications Plating Body
SUCOPRO
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
