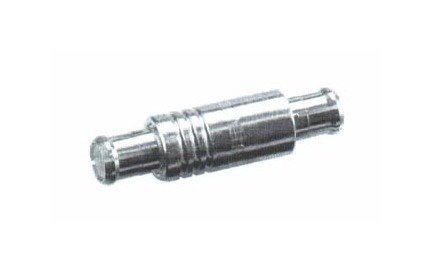

MCX Straight Plug Adaptor, Male
MCX Straight Plug Adaptor, Male
SKU:MCX-05ce36
High-quality 50 ohm MCX Straight Plug Adaptor for reliable, durable connections in MCX series applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MCX Straight Plug Adaptor, Male
$29.99
Quantity: 1
Claim Your Seller Account
MCX Straight Plug Adaptor, Male
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MCX Straight Plug Adaptor, Male is a high-quality, 50 ohm adaptor designed for seamless connections in MCX series applications. With a frequency range from DC to 6 GHz, this adaptor offers reliable performance with low VSWR and high durability. Constructed with brass body material and gold plating, it ensures superior conductivity and longevity. The adaptor meets stringent institutional procurement standards, making it an ideal choice for government and industry applications.
Product Specifications
Specifications Body Material
Brass
Specifications Centre Contact Resistance M Ohms
<5
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
MCX
Specifications Contact Captivation Lbs
>2.3
Specifications Crimp Ferrule Material
Copper
Specifications Dielectic Withstanding Voltage Sea Level V Rms
>750
Specifications Disengagement Force Lbs
1.8 to 4.5
Specifications Durability Matings
>500
Specifications Engagement Force Lbs
<5.6
Specifications Frequency Ghz
DC...6
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>100000
Specifications Insulator Material
PTFE or PFA
Specifications Outer Contacts Jack
Brass
Specifications Outer Contacts Plug
Beryllium copper, hardened
Specifications Outside Contact Resistance M Ohms
<1
Specifications Packaging
single
Specifications Pin Contact Material
Brass
Specifications Plating Body
gold
Specifications Rf Leakage Connectors For Flexible Cables Db
>60
Specifications Rf Leakage Connectors For Semi Rigid Cables Db
>70
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-67 to 311
Specifications Vswr 15 6 Ghz
1.22
Specifications Vswr Dc 15 Ghz
1.06
Specifications Working Voltage 70000 Ft V Rms
>42
Specifications Working Voltage Sea Level V Rms
>170
