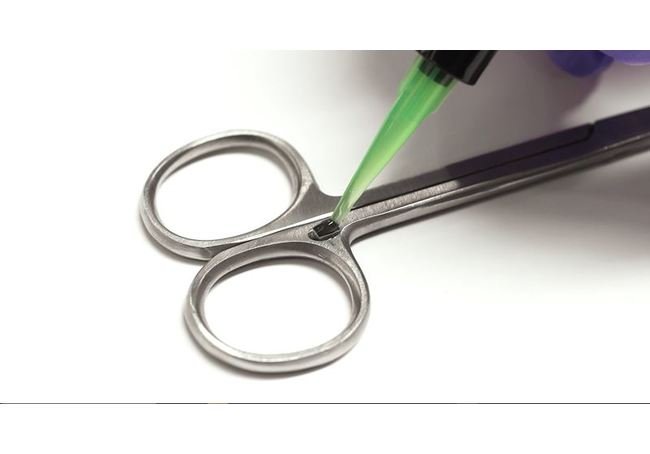

Enhance your medical device assembly with MD® 775 cP Nominal Viscosity Medical Device Adhesive. This UV/Visible light curable adhesive ensures rapid bonding to medical-grade plastics, meeting ISO approvals. With patented Encompass® technology for easy visual confirmation of placement and cure, this adhesive also offers fluorescence for post-cure quality inspection. Surviving repeated sterilization cycles, this adhesive is ideal for RFID encapsulation, sensor potting, and medical PCB coating.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Autoclave Resistant Encapsulant, Potting and Bonding AdhesiveDymax® MD® 1040-M is a versatile autoclave resistant adhesive, coating and encapsulant resistant to 100+ cycles of sterilization. It offers extremely low water absorption (0.5%) making it ideal for surgical tools and devices that are subjected to numerous instances of sterilization, including autoclave or STERRAD⢠Hydrogen Peroxide-Plasma. This material is effectively used for medical sensor encapsulations and potting of electronic components, where moisture ingression may be of concern.MD® 1040-M medical device coating is recommended for use as a coating or encapsulant on RFID chips, for surgical tools, housing assemblies and single-use or multiple use medical devices requiring 100+ cycles of autoclave. Additional applications include a variety of medical scopes and dental equipment. It also successfully bonds to stainless steel, aluminum, glass, PP/PE and printed circuit boards.The material is compliant with ISO 10993-5 cytotoxicity standards and is also formulated without IBOA, a known skin irritant. It has no solvents added and cures in seconds upon exposure to broad-spectrum UV or 365nm LED light.STERRAD⢠is a registered trademark of ASP Global Manufacturing, GmbH.
Applications 0
Assemblies Requiring Repeat Sterilization RFID and Sensor Potting/Encapsulation Housing Assemblies Medical PCB Coating
Cured Mechanical Properties Test Method For Durometer Hardness
American Society for Testing and Materials (ASTM D2240)
Cured Mechanical Properties Test Method For Elongation At Break
American Society for Testing and Materials (ASTM D638)
Cured Mechanical Properties Test Method For Modulus Of Elasticit
American Society for Testing and Materials (ASTM D638)
Cured Mechanical Properties Test Method For Tensile At Break
American Society for Testing and Materials (ASTM D638)
Features Features
UV/Visible Light Cure LED UV Curable at 365 nm Survives Repeated Autoclave Cycles Low Water Absorption
Other Cured Properties Boiling Water Absorption 2 Hours H
1.6 %
Other Cured Properties Coefficient Of Thermal Expansion Cte1
121 µm/m/ºC
Other Cured Properties Coefficient Of Thermal Expansion Cte2
194 µm/m/ºC
Other Cured Properties Glass Transition Temperature Tg
115 ºC
Other Cured Properties Linear Shrinkage
0.8 %
Other Cured Properties Refractive Index At 20 Degree Celsius C T
1.49
Other Cured Properties Test Method For Boiling Water Absorption
American Society for Testing and Materials (ASTM D570)
Other Cured Properties Test Method For Coefficient Of Thermal Ex
American Society for Testing and Materials (ASTM E831)
Other Cured Properties Test Method For Glass Transition Temperat
American Society for Testing and Materials (ASTM D5418)
Other Cured Properties Test Method For Linear Shrinkage
American Society for Testing and Materials (ASTM D2566)
Other Cured Properties Test Method For Refractive Index At 20 De
American Society for Testing and Materials (ASTM D542)
Other Cured Properties Test Method For Water Absorption 25 Degre
American Society for Testing and Materials (ASTM D570)
Other Cured Properties Water Absorption 25 Degree Celsius C Temp
0.5 %
Properties Modulus Of Elasticity
668.8 MPa | 97,000 psi
Properties Rheology
Newtonian
Properties Tensile At Break
18.6 MPa | 2,700 psi
Specifications Biocompatibility
ISO 10993-5 Cytotoxicity
Specifications Cured Durometer Hardness
D60
Specifications Cured Elongation At Break
8 %
Specifications Nominal Viscosity
775 cP
Specifications Recommended Substrates
Acrylonitrile Butadiene Styrene (ABS) | Polycyclohexylene Dimethylene Terephthalate Glycol (PCTG) | Polymethyl methacrylate (PMMA) | Printed Circuit Board (PCB) | Stainless Steel (SS)
Substrate Bonding Guide Recommended Adhesives
Acrylonitrile-Butadiene-Styrene (ABS) | Aluminum (AL) | Borosilicate Glass (GL), Quartz Glass (GL), and Mica Glass (GL) | Brass (BR) | Cellulose Acetate Propionate (CAP) (Limited Applications) | Polycarbonate (PC) | Polycyclohexylene Dimethylene Terephthalate Glycol (PCTG) | Polyimide (PI) (Limited Applications) | Polymethyl Methacrylate (PMMA) | Polyphenylene Oxide (PPO) | Polystyrene (PS) (Limited Applications) | Stainless Steel (SS) | Styrene-Acrylonitrile (SAN) | Thermoplastic Polyurethane (TPU) (Limited Applications)
Uncured Properties Chemical Class
Acrylated Urethane
Uncured Properties Density
0.99 g/ml
Uncured Properties Shelf Life At Room Temperature Rt 22 To 25 De
9 months
Uncured Properties Soluble In
Organic Solvents
Uncured Properties Solvent Content
No Nonreactive Solvents
Uncured Properties Test Method For Density
American Society for Testing and Materials (ASTM D1875)
Uncured Properties Test Method For Nominal Viscosity
American Society for Testing and Materials (ASTM D1084)
Uncured Properties Uncured Appearance
Colorless to Light-Yellow
