Mechanical High Pressure Test Plug - 145-9 Series, 6.375 Inch
Mechanical High Pressure Test Plug - 145-9 Series, 6.375 Inch
SKU:HIG-a2f2d3
Durable mechanical test plug with solid rubber or inflatable seals, lightweight aluminum, and replaceable seals for high-pressure applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Mechanical High Pressure Test Plug - 145-9 Series, 6.375 Inch
$89.99
Quantity: 1
Claim Your Seller Account
Mechanical High Pressure Test Plug - 145-9 Series, 6.375 Inch
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 145-9 Series Mechanical High Pressure Test Plug is a superior choice for various applications, featuring solid rubber or inflatable seals for easy installation. With a lightweight aluminum construction and replaceable seals, this plug delivers a positive seal against line pressure. Ideal for force and water main projects, lift stations, nuclear cooling lines, fire protection systems, and more, meeting stringent industry standards for reliability and performance.

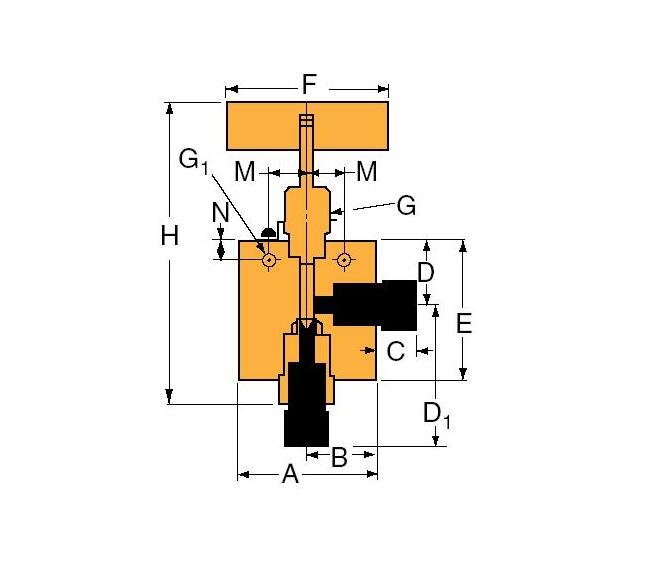

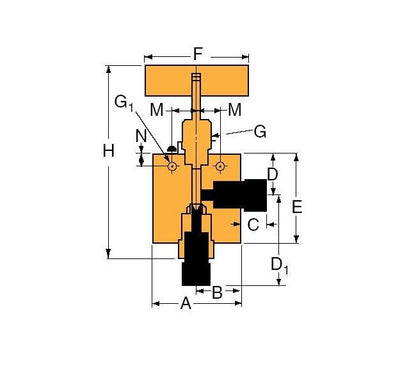

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
2.36 in | 59.94 mm
Specifications D Height
1.31 in | 33.27 mm
Specifications E Height
2.62 in | 66.55 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.52 in | 165.60 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
60000 psi | 4137 bar
Specifications Rated Cv
0.09
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
