Mediafilter MDV Modular Mist Collector - Vertical Series 3000 & 6000 ft³/min

Name: Mediafilter MDV Modular Mist Collector - Vertical Series 3000 & 6000 ft³/min
Brand: Dust Collector Services, Inc.
SKU: MOD-f91cc6
Price: 6999.99 USD
Availability: OutOfStock

SKU:MOD-f91cc6

High-performance mist collectors for metalworking applications, ensuring clean air and enhanced productivity.

$6,999.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

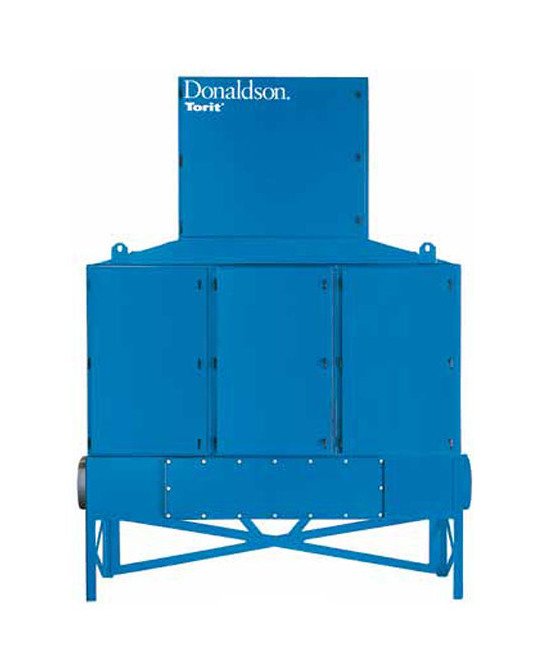

The Models MDV Modular Mediafilter™ Vertical Series Mist Collectors are high-performance mist collectors tailored for applications such as wet grinding, machining, soldering, brazing, and die casting. With a three-stage filtration system, they efficiently filter mist, smoke, and dust from tough metalworking processes. Featuring a powerful airfoil fan with NEMA Premium® Efficiency Electric Motor, these collectors offer exceptional performance and cost savings. The vertical design promotes efficient filter drainage and extends the vee-bag filter life, ensuring a cleaner work environment for enhanced productivity. Expandable and customizable, these mist collectors provide a versatile solution that aligns with OSHA Clean Air Standards.

Product Specifications

Additional Information

Vertical orientation enhances filter drainage and improves vee-bag filter lifeVariety of design layouts and filter choices for both flexibility and expandabilityLarger custom sizes availableProvides a cleaner work environment for maximum productivityHelps support OSHA Clean Air Standards

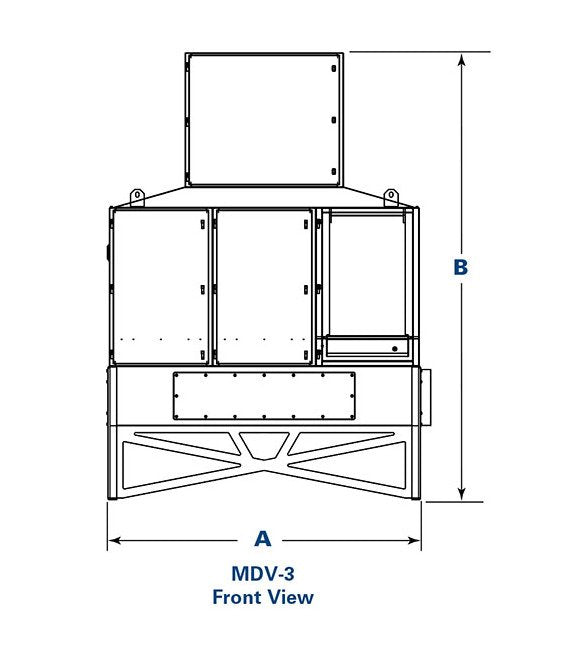

Dimensions Dimension A

90.8 in | 2306.3 mm

Dimensions Dimension B

129.9 in | 3299.5 mm

Dimensions Dimension C

25.1 in | 637.5 mm

Dimensions Dimension D

29.8 in | 756.9 mm

Equipment Options

PrefilterImpinger4" (101.6 mm) Multi-VeeFirst-stage high efficiency filter, 24 x 24 x 4 inches (609.6 x 609.6 x 101.6 mm)2" (50.8 mm) P-Trap with optional Y-Strainer assemblyHEPA or 95% D.O.P. filter module, 24 x 24 x 11.5 inches (609.6 x 609.6 x 292.1 mm) with Minihelic® (Minihelic is a registered trademark of Dwyer Instruments, Inc.) gaugeSprinkler head

Note

Significantly improve the performance of your collector with genuine Donaldson Torit replacement filters and parts.All Rights Reserved. All products, product specifications, and data (airflow, capacity, dimensions, or availability) are subject to change without notice, and may vary by region or country. Donaldson Torit is a registered trademark of Donaldson Company, Inc. Contains Donaldson proprietary technology.

Specifications Inlet Collar

16 in | 406.4 mm

Specifications Motor Power At 3000 Cubic Feet Per Minute Ftmin N

5 hp

Specifications Motor Power At 6000 Cubic Feet Per Minute Ftmin N

10 hp

Specifications Nominal Airflow

3000 ft³/min | 6000 ft³/min | 5096 m³/h | 10192 m³/h

Specifications Primary Filter Area

378 ft² | 35.1 m²

Specifications Shipping Weight

1800 lb | 816.5 kg
