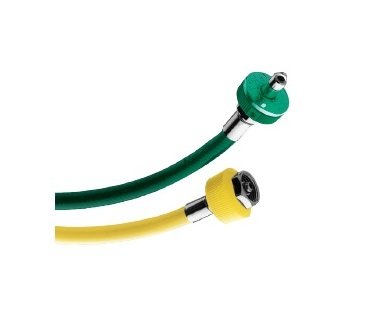

Medical Gas Hose Assemblies

Medical Gas Hose Assemblies

SKU:MED-491442

N/A

$49.99

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

CSA medical hose assemblies availableCE marked medical hose assemblies availableAvailable in custom lengths (one foot increments) and configurations to suit your requirementsAvailable for a variety of gases in USA and ISO colors

Product Specifications

Note

Not all combinations are possible.

Part Configurator

For correct hose matrix follow these rules when selecting inlet and outlet connections:Female fittings firstNumbers before lettersIn alphabetical order

Specifications Applications

Medical

Specifications Color Code

I - ISO | P - Pin Stripe (ISO Air) | S - Stripe | U - USA

Specifications Gas Type

2 - Nitrous Oxide | A - Medical Air | C - Carbon Dioxide | H - Heliox | I - Instrument Air | J - O2He | N - Nitrogen | O - Oxygen | V - Medical Vacuum | W - Waste Anesthetic Gas Disposal (WAGD)

Specifications Hose Type

C4 - Conductive 1/4 in. | C5 - Conductive 5/16 in. | D4 - Di (2-Ethylhexyl) Phthalate (DEHP) Free 1/4 in. | G4 - General Purpose 1/4 in. | N4 - Non-Conductive 1/4 in. | N5 - Non-Conductive 5/16 in.

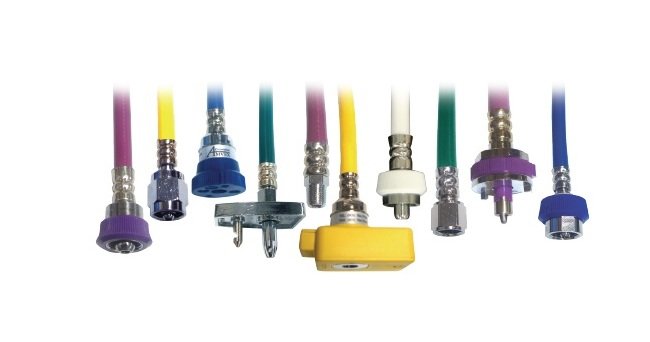

Specifications Inlet And Outlet Connections

4S - 1/4 in. Female National Pipe Thread (FNPT) Brass Swivel | AH - Australian Handtight | AM - Australian Male | BF - British Female | BM - British Male | CE - Chemetron Male with Elbow | CF - Chemetron Female | CM - Chemetron Male | DA - Diameter Index Safety System (DISS) Hex Nut with Elbow | DC - Diameter Index Safety System (DISS) Male with Demand Check | DE - Diameter Index Safety System (DISS) Male no Demand Check with Elbow | DF - Diameter Index Safety System (DISS) Hex Nut | DH - Diameter Index Safety System (DISS) Handtight | DM - Diameter Index Safety System (DISS) Male no Demand Check | F2 - 1/8 in. Female National Pipe Thread (FNPT) | F4 - 1/4 in. Female National Pipe Thread (FNPT) | GE - German Male no Check Angled | GM - German Male Straight | HE - Diameter Index Safety System (DISS) Handtight with Elbow | JF - Japanese Female | JM - Japanese Male | M2 - 1/8 in. Male National Pipe Thread (MNPT) | M4 - 1/4 in. Male National Pipe Thread (MNPT) | MF - MedStar Female | MM - MedStar Male | NA - NIST Male Angled | NF - NIST Female | NM - NIST Male | OE - Ohmeda Male with Elbow | OF - Ohmeda Female | OM - Ohmeda Male | PE - Puritan Male with Elbow | PF - Puritan Female | PM - Puritan Male | RE - Carburos Male with Elbow | RF - Carburos Female | RM - Carburos Male | SF - Schrader Female | SM - Schrader Male | SS - Schrader Swivel Adapter | T4 - 1/4 in. Hose Barb | XE - Oxequip Male with Elbow | XM - Oxequip Male | XX - Blank | ZE - AGA Female with Elbow | ZF - AGA Female | ZM - AGA Male

Specifications Other

B - Brass Fitting | C - Bracket Clamp | D - German Institute for Standardization (DIN) Rail Clamp | M - MR Conditional
