Medical Grade Isolated UPS - Linear/1, 5 kW Capacity
Medical Grade Isolated UPS - Linear/1, 5 kW Capacity
SKU:PRO-6e1674
Reliable Medical Grade UPS with high surge capability, ultra-low leakage current, and compatibility with modern loads. Prioritizes patient safety and Power Quality.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Medical Grade Isolated UPS - Linear/1, 5 kW Capacity
$2,499.99
Quantity: 1
Claim Your Seller Account
Medical Grade Isolated UPS - Linear/1, 5 kW Capacity
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

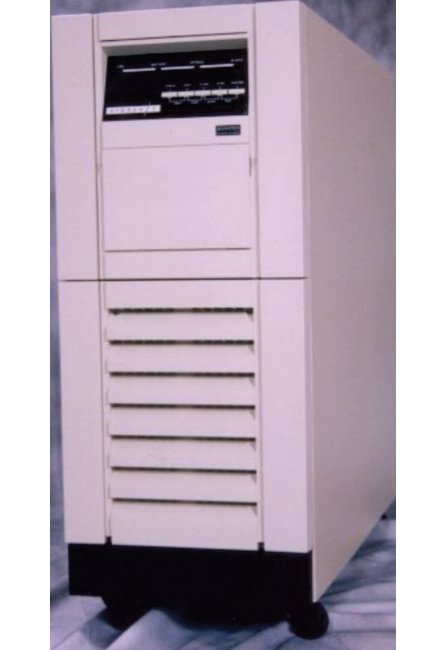

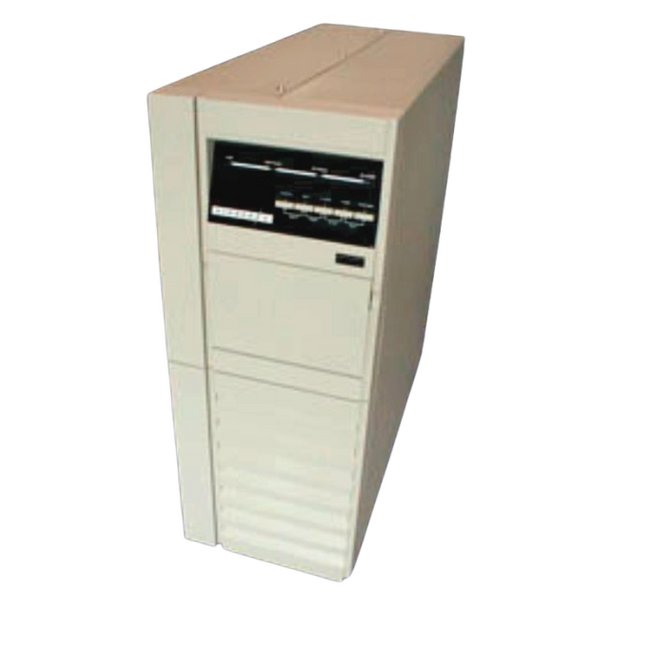

The Linear/1 Medical Grade Isolated Uninterruptible Power Supply (UPS) offers a reliable power solution for professional services. With no-break transfers, high surge capability, and ultra-low leakage current, it prioritizes patient safety. Compatible with modern loads and power-factor corrected equipment, it ensures top-tier Power Quality. Choose Linear/1 for unparalleled performance and reliability in medical environments.
Product Specifications
Additional Information Additional Information
Emergency power-offSafety certification UL 2601-1 / UL 60601-1, UL 1778, cULEMC compliance FCC-A, Vfg 243/1991, Vfg 46/1992, CISPR 22 compliance listingSoftware The LinCS Software Suite is a comprehensive collection of power management shutdown software for use with linear/1 uninterruptible power systems. The software provides enhanced UPS monitoring and unattended system shutdown features for Windows 9x and Windows NT/2000. The software furnishes a complete record of critical power events and UPS activity on an event log, helping you spot, diagnose and react more effectively to problems. On-line manuals include easy-to-follow installation and operating instructions in either Adobe Acrobat or ASCII formats.Compliance with universal safety and EMC standardsUL 2601-1 / UL 60601-1 medical safety certificationFCC part 15: Class A, Vfg 243/1991, Vfg 46/1992, CISPR 22 MEC compliance, UL 1778, CAN/CSA C22.2 No. 107.1-M91Low current leakage for "near patient or staff" applicationsLess than 100 microamps typical . . . industry safety standards require less than 500 microampsEfficiency96% efficient, which may in some applications save you thousands of dollars in energy consumption and AC expendituresConfigurable3, 4, 5, and 8kVA/kW industry exclusive offering6.5 to 13 minutes standard at full load (with extended runtime options) battery run times for power loss situations . . . be they planned or not3-8k - 200-240V input, 100, 110, 115, 120, 200, 208, 220, 230 or 240V output1 to 4 plug-and-play panels with multiple receptacles in each18 internal diagnostic routinesComprehensive UPS condition alerts: low runtime, overload, circuit breaker warning/shutdown, high ambient temperature, check battery, check inverter, memory error, high battery, low battery advisory condition, check fan, batteries disconnected, tap regulator alarm, low AC out warning/shutdown, high AC out warning/shutdown, check MOVs, auto bypass, check fuse board, check power supplyUnity power factorNo oversizing of UPS is required for power factor corrected loadsSystem superiorityFault tolerantRealtime multi-tasking microprocessor controlWorldwide voltage and frequency compatibilityLowest operating cost in its power range40 decibel at one meter audible noise (5 times softer than other offerings)Easy installation
Dimensions Depth
25.75 in | 654 mm
Dimensions Height
29 in | 737 mm
Dimensions Width
10.5 in | 267 mm
How Can We Configure One For You How Can We Configure One For Yo
kVA/KW Options 3, 4, 5 and 8 kVA/KWReceptacle options (Other options available on request)Line cord & plug options (hospital grade where applicable)Extended runtime battery optionsInternal or external charger upgradesCommunications connections, network compatibility and remote diagnostic featuresStart up service utilizing our specialized technicians who ensure proper installation and provide staff trainingOn-site service with 24 hour response timePreventative maintenance service plans (1 and 2 visits per year programs)Shipping options on replacement parts (2-5 day ground or overnight expedited delivery)Help desk support (8-5 Monday through Friday standard coverage, 7/24 premium upgrade offering)The Linear/1 UPS having been certified for medical safety under UL 60601-1 is intended for use in a medical environment providing clean safe electrical power. The Linear/1 UPS is NOT to be considered a primary or emergency source of electrical power. The Linear/1 UPS is made to enhance the quality of power provided by the power grid and emergency generator in addition to being secondary source of electrical back up power providing an interim source of power between the loss of power normally provided by the power grid and the introduction of power provided by the emergency power generator.
Note Note
All specifications subject to change without notice.
Technical Specs Alternating Current Ac Input Voltage Range
147 to 264 V
Technical Specs Altitude
Maximum ambient operating temperature drops by 1 degree C per 305 meters (1000 feet) above sea level, maximum elevation being 3050 meters (10,000 feet).
Technical Specs Audible Noise At 1 Meter
< 40 dBA
Technical Specs Capacity
5 kV·A | 5 kW
Technical Specs Communication
RS-232 port (DE9) featuring full-duplex serial communication, alarm contacts, inverter contacts, and remote shutdown
Technical Specs Efficiency On Line
96 %
Technical Specs Electromagnetic Compatibility Emc Compliance
CISPR 22 | FCC-A | Vfg 243/1991 | Vfg 46/1992
Technical Specs Heat On Line
711 Btu/hr | 0.208 kW·h
Technical Specs Input Connection
Hardwired input is standard (line cord options available - contact factory)
Technical Specs Input Nominal Current At Full Load
23 A for 240 V | 24 A for 230 V | 25 A for 220 V | 27 A for 208 V | 28 A for 200 V
Technical Specs Lightning Surge And Noise Protection
200 Joule surge suppression rating. 0.7% Let-Through-Voltage (LTV). Tested to ANSI/IEEEC62.41 Categories A3 and B3 tests. Common Mode - up to 50 dB. Normal Mode - up to 90 dB.Separately derived power source per NEC Article 250-5d.
Technical Specs Nominal Operating Frequency
50 Hz | 60 Hz
Technical Specs Nominal Output Voltage
100 V | 110 V | 115 V | 120 V | 200 V | 208 V | 220 V | 230 V | 240 V
Technical Specs Note For Alternating Current Ac Input Voltage Ra
For nominal 200/208/220/230/240V output
Technical Specs On Inverter Operating Frequency
0.15 Hz
Technical Specs On Line Operating Frequency
Output frequency tracks input within adjustable limits (±3 Hz default)
Technical Specs Operating Temperature
0 to +40 ºC
Technical Specs Output Connection
Hardwired input is standard (receptacle options available - contact factory)
Technical Specs Output Voltage Regulation
±5% of nominal output voltage
Technical Specs Output Voltage Waveform
Sinewave, computer-grade power with 5% THD at rated kW load
Technical Specs Overload Capacity
200% Surge for a minimum of 2.5 seconds / 110% Surge for a minimum of 10 minutes
Technical Specs Recharge Time To 85 Percent Charge
2 to 3 hour
Technical Specs Safety Certification
Canadian Underwriters Laboratories (cUL) | Underwriters Laboratories (UL) 1778 | Underwriters Laboratories (UL) 2601-1 | Underwriters Laboratories (UL) 60601-1
Technical Specs Storage Temperature
-20 to +60 ºC
Technical Specs Storage Temperature If Battery Is Not Removed
-20 to +40 ºC
Technical Specs Testing Standards
American National Standards Institute (ANSI)/Institute of Electrical and Electronics Engineers (IEEE) C62.41 (1980), C62.45 (1987) | International Electrotechnical Commission (IEC) 801-2, 801-3, 801-4, 801-5
Technical Specs Runtime 80 Percent Load
9 min
Technical Specs Runtime Full 100 Percent Load
6.5 min
Technical Specs Runtime Half Load
18 min
Technical Specs Weight
295 lb | 134 kg
Technical Specs Without Condensation Relative Humidity
0 to 95 %
