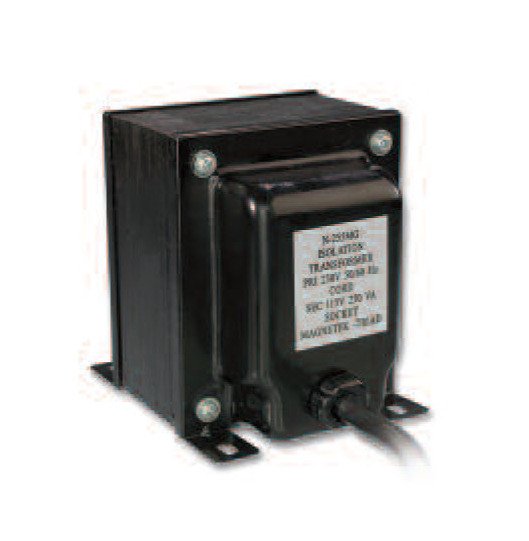

Medical Grade Isolation Power Transformer
Medical Grade Isolation Power Transformer
SKU:POW-f5b11d
High-performance Medical Grade Isolation Power Transformer for maximum safety and reliability in medical environments.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Medical Grade Isolation Power Transformer
$349.99
Quantity: 1
Claim Your Seller Account
Medical Grade Isolation Power Transformer
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior isolation with our Medical Grade Isolation Power Transformer designed to meet the stringent low leakage current requirements for medical equipment. Constructed with nonconcentrically wound coils and separate primary and secondary windings, it ensures no electrical connection between circuits under normal or overload conditions. Equipped with resettable circuit breaker protection, this transformer delivers safety and reliability in medical settings.
Product Specifications
Note Note
Leakage current from primary to secondary is rated at less than 50 micro-amps and is typically measured at less than 10 micro-amps.
Specifications Case Type
M
Specifications Connections
6' Cord, Plug & Socket Circuit Breaker
Specifications Depth D
6 1/8 in
Specifications Height H
4 5/8 in
Specifications Mounting Depth
4 15/16 in
Specifications Mounting Hole Size
3/8 x 3/16 in
Specifications Mounting Width
3 in
Specifications Output Wattage Va Rating
250 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Rms Current
2.17 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
11.90 lb
Specifications Width W
3 7/8 in
Technical Notes Technical Notes
Line cord, plug and receptacle are U.L. listed and verified to meet federal specifications.Connections are by leads, plugs and sockets.Hi-pot tested at 1,500 VRMS.
