Medical Grade Isolation Power Transformer - 5.28 Inches
Medical Grade Isolation Power Transformer - 5.28 Inches
SKU:POW-d812f3
Boost medical power supply reliability with our 5.28'' Isolation Transformer.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Medical Grade Isolation Power Transformer - 5.28 Inches
$599.99
Quantity: 1
Claim Your Seller Account
Medical Grade Isolation Power Transformer - 5.28 Inches
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

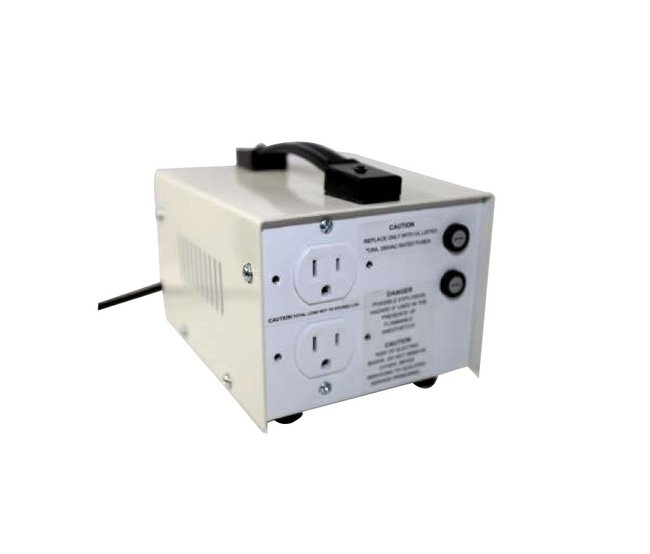

Enhance medical procedures with our 5.28-inch Medical Grade Isolation Power Transformer. Constructed using toroidal transformer technology for reduced stray fields, enhanced efficiency, and a compact design. Featuring Class F insulation, steel enclosure with white powder coating. Ensure safety and reliability with UL 60601-1 and CSA-C22.2 certifications.
Product Specifications
Connections Input Connections
11 ft. Medical Grade Power Cord with NEMA 6-15P Plug.
Connections Output Connections
Duplex Receptacle. NEMA 5-15R.
Electrical Specifications At 25 Degree Celsius C Temperature Alt
1500 V
Electrical Specifications At 25 Degree Celsius C Temperature Fre
50 Hz | 60 Hz
Electrical Specifications At 25 Degree Celsius C Temperature Fus
Replace only with 1.8 A, 250 VAC, Slow Blow, UL Listed Fuses.
Electrical Specifications At 25 Degree Celsius C Temperature Inp
240 V
Electrical Specifications At 25 Degree Celsius C Temperature Lea
Less Than 50 µA
Electrical Specifications At 25 Degree Celsius C Temperature Max
250 V·A
Electrical Specifications At 25 Degree Celsius C Temperature Not
Alternating Current (AC) Output Voltage (Receptacle) at Maximum 2.08 A.
Electrical Specifications At 25 Degree Celsius C Temperature Ope
Not to Exceed 60 ºC
Electrical Specifications At 25 Degree Celsius C Temperature Out
120 V
Electrical Specifications At 25 Degree Celsius C Temperature Typ
10 µA
Note Note
Medical isolation transformer box is certified to UL 60601-1, 2nd edition medical standard and CSA-C22.2.No. 601.1M90, 2005UL: (E352717), UL60601-1, 2nd edition and CAN/CSA-C22.2 No. 601.1M90, 2005Not for use in life critical application.
Specifications Enclosure Color
White
Specifications Enclosure Finish
Powder Coated
Specifications Enclosure Material
Steel

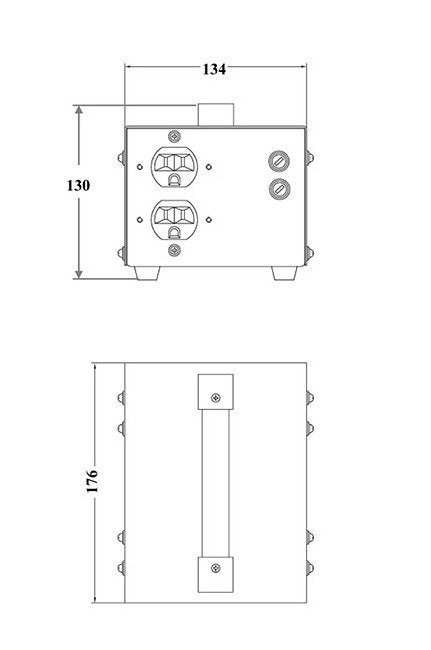

Specifications Height
5.12 in | 130 mm
Specifications Industry Standards
CSA | cULus Listed | RoHS 2015/863/EU
Specifications Insulation Class
Class F (155º)
Specifications Length
5.28 in | 134 mm
Specifications Mounting
Rubber Feet for Horizontal Mounting.
Specifications Safety
Medical
Specifications Warranty
5 years
Specifications Weight
4.0 kg
Specifications Width
6.93 in | 176 mm
