Medical Grade Isolation Power Transformer - 7.17 in Length

Medical Grade Isolation Power Transformer - 7.17 in Length

POW-cb92f0

Enhanced medical-grade isolation transformer with toroidal construction, Class F insulation, and UL/CSA certifications for reliable and efficient power supply in medical settings.

$799.99
$799.99
Sale

Initiate Order

Medical Grade Isolation Power Transformer - 7.17 in Length

Medical Grade Isolation Power Transformer - 7.17 in Length

$799.99

Quantity: 1

Claim Your Seller Account

Medical Grade Isolation Power Transformer - 7.17 in Length

Medical Grade Isolation Power Transformer - 7.17 in Length

$799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

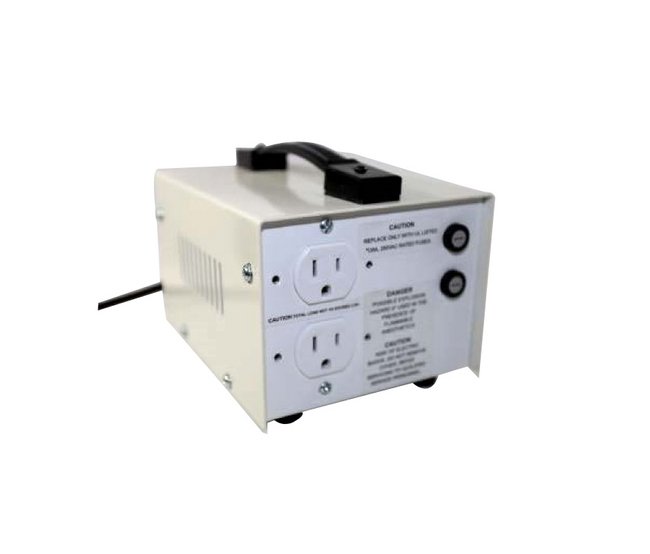

The 7.17 Inch Medical Grade Isolation Power Transformer is expertly crafted with toroidal transformer technology for reduced stray fields, enhanced efficiency, and a compact design. With Class F insulation, this steel enclosure features a white powder-coated finish. Delivering 1000 V·A maximum power with industry-leading safety certifications like UL 60601-1 and CSA standards, this transformer ensures reliable performance and peace of mind for medical applications.

Product Specifications

Connections Input Connections
11 ft. Medical Grade Power Cord with NEMA 6-15P Plug.
Connections Output Connections
Duplex Receptacle. NEMA 5-15R.
Electrical Specifications At 25 Degree Celsius C Temperature Alt
1500 V
Electrical Specifications At 25 Degree Celsius C Temperature Fre
50 Hz | 60 Hz
Electrical Specifications At 25 Degree Celsius C Temperature Fus

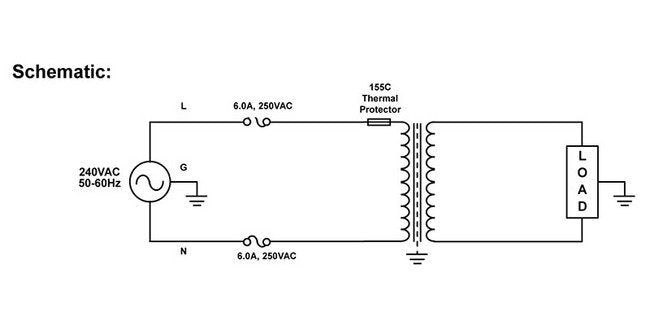

Replace only with 6.0 A, 250 VAC, Slow Blow, UL Listed Fuses.
Electrical Specifications At 25 Degree Celsius C Temperature Inp
240 V
Electrical Specifications At 25 Degree Celsius C Temperature Lea
Less Than 50 µA
Electrical Specifications At 25 Degree Celsius C Temperature Max
1000 V·A
Electrical Specifications At 25 Degree Celsius C Temperature Not
Alternating Current (AC) Output Voltage (Receptacle) at Maximum 8.33 A.
Electrical Specifications At 25 Degree Celsius C Temperature Ope
Not to Exceed 60 ºC
Electrical Specifications At 25 Degree Celsius C Temperature Out
120 V
Electrical Specifications At 25 Degree Celsius C Temperature Typ
10 µA
Note Note
Medical isolation transformer box is certified to UL 60601-1, 2nd edition medical standard and CSA-C22.2.No. 601.1M90, 2005UL: (E352717), UL60601-1, 2nd edition and CAN/CSA-C22.2 No. 601.1M90, 2005Not for use in life critical application.
Specifications Enclosure Color
White
Specifications Enclosure Finish
Powder Coated
Specifications Enclosure Material
Steel

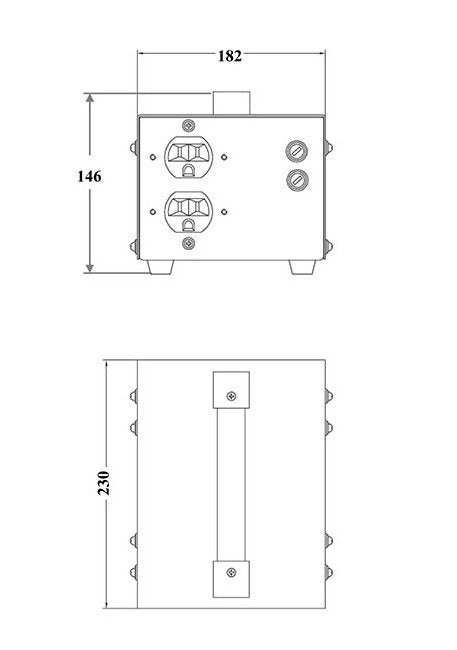

Specifications Height
5.75 in | 146 mm
Specifications Industry Standards
CSA | cULus Listed | RoHS 2015/863/EU
Specifications Insulation Class
Class F (155º)
Specifications Length
7.17 in | 182 mm
Specifications Mounting
Rubber Feet for Horizontal Mounting.
Specifications Safety
Medical
Specifications Warranty
5 years
Specifications Weight
21 kg
Specifications Width
9.06 in | 230 mm
