Medical Grade Isolation Power Transformer - 8.74 Inch Length
Medical Grade Isolation Power Transformer - 8.74 Inch Length
SKU:POW-08bb94
Powerful and efficient Medical Grade Isolation Transformer for enhanced safety and performance in medical settings.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Medical Grade Isolation Power Transformer - 8.74 Inch Length
$599.99
Quantity: 1
Claim Your Seller Account
Medical Grade Isolation Power Transformer - 8.74 Inch Length
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

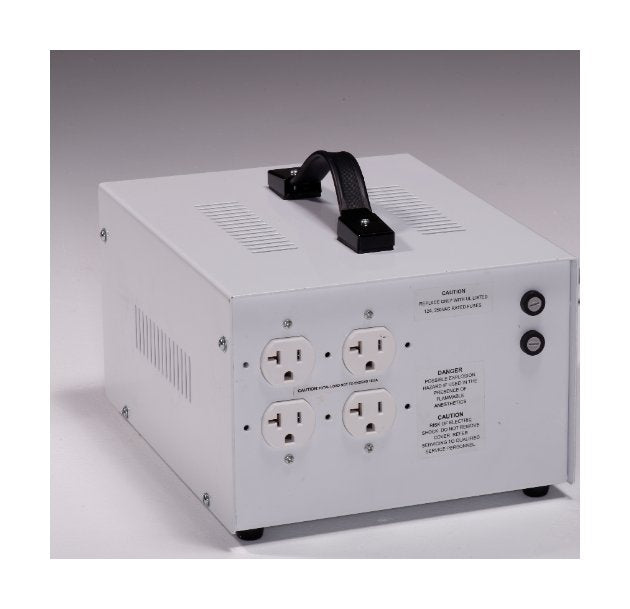

The 8.74-inch Medical Grade Isolation Power Transformer features a toroidal transformer construction for reduced stray fields, increased efficiency, and a compact size. With Class F insulation and a white powder-coated steel enclosure, this transformer ensures optimal safety and durability. It offers maximum power of 2000 VA, 94% efficiency at full load, and meets standards including UL 60601-1 and CSA-C22.2 No. 601.1M90. Ideal for medical applications with a 5-year warranty.
Product Specifications
Connections Input Connections
11 ft. Medical Grade Power Cord with NEMA 5-20P Plug.
Connections Output Connections
Duplex Receptacle. NEMA 5-20R.
Electrical Specifications At 25 Degree Celsius C Temperature Alt
1500 V
Electrical Specifications At 25 Degree Celsius C Temperature Fre
50 Hz | 60 Hz

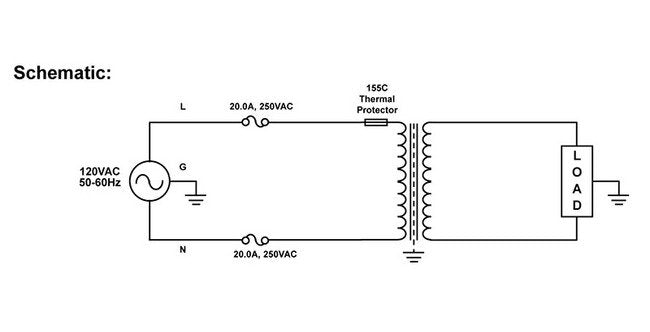

Electrical Specifications At 25 Degree Celsius C Temperature Fus
Replace only with 20.0 A, 250 VAC, Slow Blow, UL Listed Fuses.
Electrical Specifications At 25 Degree Celsius C Temperature Inp
120 V
Electrical Specifications At 25 Degree Celsius C Temperature Lea
Less Than 50 µA
Electrical Specifications At 25 Degree Celsius C Temperature Max
2000 V·A
Electrical Specifications At 25 Degree Celsius C Temperature Not
Alternating Current (AC) Output Voltage (Receptacle) at Maximum 16.66 A.
Electrical Specifications At 25 Degree Celsius C Temperature Ope
Not to Exceed 60 ºC
Electrical Specifications At 25 Degree Celsius C Temperature Out
120 V
Electrical Specifications At 25 Degree Celsius C Temperature Typ
10 µA
Note Note
Medical isolation transformer box is certified to UL 60601-1, 2nd edition medical standard and CSA-C22.2.No. 601.1M90, 2005UL: (E352717), UL60601-1, 2nd edition and CAN/CSA-C22.2 No. 601.1M90, 2005Not for use in life critical application.
Specifications Enclosure Color
White
Specifications Enclosure Finish
Powder Coated
Specifications Enclosure Material
Steel

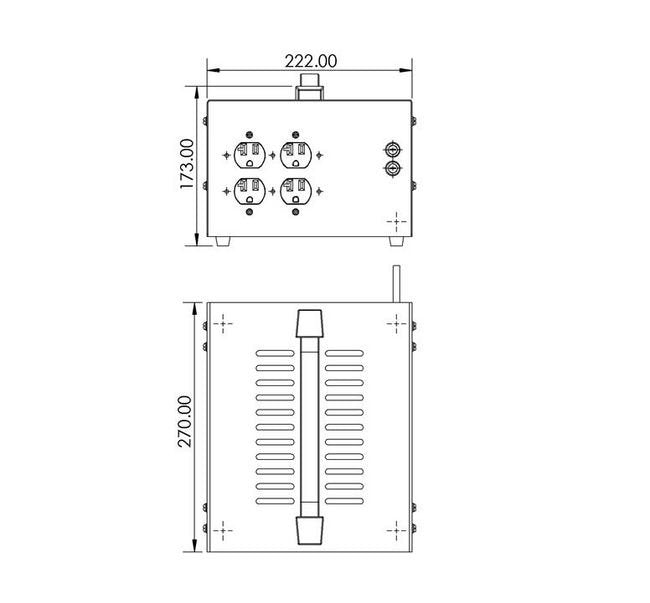

Specifications Height
6.82 in | 173 mm
Specifications Industry Standards
CSA | cULus Listed | RoHS 2015/863/EU
Specifications Insulation Class
Class F (155º)
Specifications Length
8.74 in | 222 mm
Specifications Mounting
Rubber Feet for Horizontal Mounting.
Specifications Safety
Medical
Specifications Warranty
5 years
Specifications Weight
42.5 kg
Specifications Width
10.63 in | 270 mm
