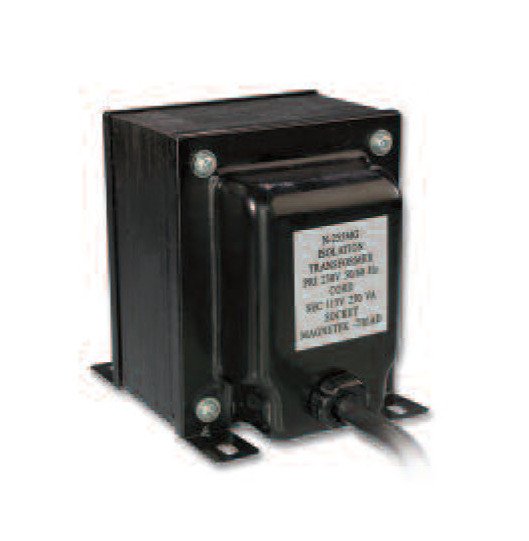

Our Medical Grade Isolation Power Transformers by Triad are designed to isolate equipment from direct power line connections, meeting stringent low leakage current requirements for medical equipment. Constructed with non-concentrically wound coils and dual arbors for primary and secondary windings, these transformers prevent electrical connection between circuits under normal or overload conditions. Featuring a resettable circuit breaker for overload and short circuit protection, our hospital type transformers ensure safe and reliable power isolation.
Product Specifications
Note Note
With ground wire
Specifications Case Type
M
Specifications Connections
6' Cord, Plug & Socket
Specifications Depth D
5 in
Specifications Height H
4 5/8 in
Specifications Mounting Depth
3 13/16 in
Specifications Mounting Hole Size
3/8 x 3/16 in
Specifications Mounting Width
3 in
Specifications Output Wattage Va Rating
250 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
230 V
Specifications Secondary Current
2.170 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
11.00 lb
Specifications Width W
3 15/16 in
Technical Notes Technical Notes
Line cord, plug and receptacle are U.L. listed and verified to meet federal specifications.Connections are by leads, plugs and sockets.Hi-pot tested at 1,500 VRMS.
