Medical Grade Isolation Power Transformers
Medical Grade Isolation Power Transformers
SKU:POW-13fa54
Ensure equipment safety with our hospital-grade isolation power transformers. Designed with nonconcentrically wound coils and a resettable circuit breaker for protection against overloads.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Medical Grade Isolation Power Transformers
$299.99
Quantity: 1
Claim Your Seller Account
Medical Grade Isolation Power Transformers
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

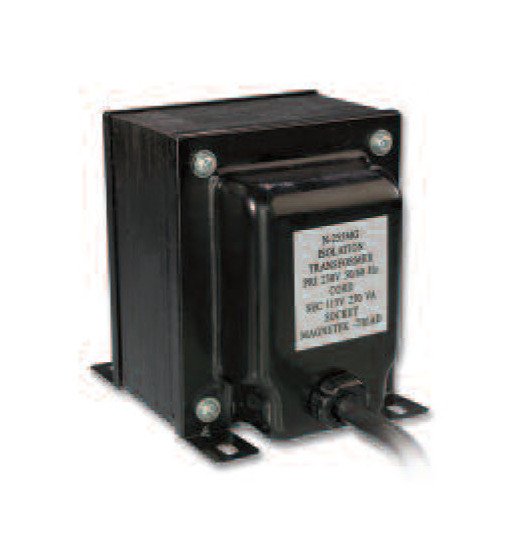

Our medical grade isolation power transformers, part of the Triad series, are designed to isolate equipment from direct power line connection. Compliant with low leakage current requirements for medical equipment, these transformers feature nonconcentrically wound coils, with primary and secondary windings separated by insulation for safety. The hospital type units come with a resettable circuit breaker for protection against overload and short circuit conditions.
Product Specifications
Note Note
With ground wire
Specifications Case Type
M
Specifications Connections
6' Cord, Plug & Socket
Specifications Depth D
5 in
Specifications Height H
4 5/8 in
Specifications Mounting Depth
3 13/16 in
Specifications Mounting Hole Size
3/8 x 3/16 in
Specifications Mounting Width
3 in
Specifications Output Wattage Va Rating
250 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
2.170 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
11.00 lb
Specifications Width W
3 15/16 in
Technical Notes Technical Notes
Line cord, plug and receptacle are U.L. listed and verified to meet federal specifications.Connections are by leads, plugs and sockets.Hi-pot tested at 1,500 VRMS.
