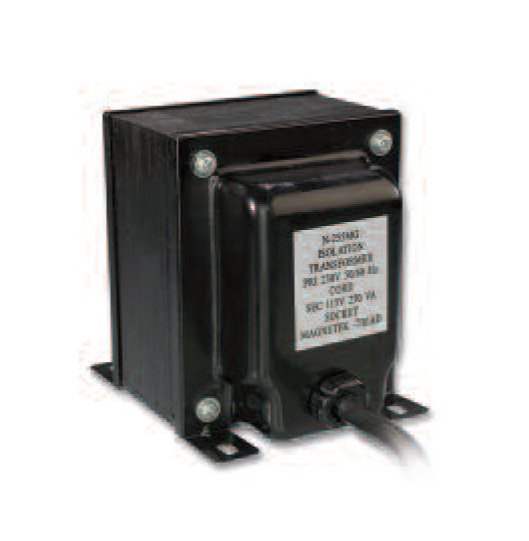

Medical Grade Isolation Power Transformers
Medical Grade Isolation Power Transformers
SKU:POW-535150
Isolate equipment safely with our Medical Grade Transformers. Designed for medical equipment's stringent requirements.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Medical Grade Isolation Power Transformers
$199.99
Quantity: 1
Claim Your Seller Account
Medical Grade Isolation Power Transformers
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Medical Grade Isolation Power Transformers are specifically designed to isolate equipment from direct power connection, meeting the stringent low leakage current requirements of modern medical equipment. These transformers feature nonconcentrically wound coils with separate primary and secondary windings, preventing electrical connection and ensuring safety under normal or overload conditions. Hospital type units come with a resettable circuit breaker for added protection against overloads and short circuits, providing reliable performance in healthcare settings.
Product Specifications
Note Note
With ground wire
Specifications Case Type
M
Specifications Connections
6' Cord, Plug & Socket
Specifications Depth D
5 13/16 in
Specifications Height H
3 7/8 in
Specifications Mounting Depth
3 1/2 in
Specifications Mounting Hole Size
3/8 x 3/16 in
Specifications Mounting Width
2 1/2 in
Specifications Output Wattage Va Rating
150 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
1.300 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
7.00 lb
Specifications Width W
3 9/32 in
Technical Notes Technical Notes
Line cord, plug and receptacle are U.L. listed and verified to meet federal specifications.Connections are by leads, plugs and sockets.Hi-pot tested at 1,500 VRMS.
