Medical Grade Isolation Power Transformers
Medical Grade Isolation Power Transformers
SKU:POW-c0f9e6
Ensure safety and compliance with our Medical Grade Isolation Power Transformers. Designed for medical equipment, with separate windings and overload protection.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Medical Grade Isolation Power Transformers
$349.99
Quantity: 1
Claim Your Seller Account
Medical Grade Isolation Power Transformers
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

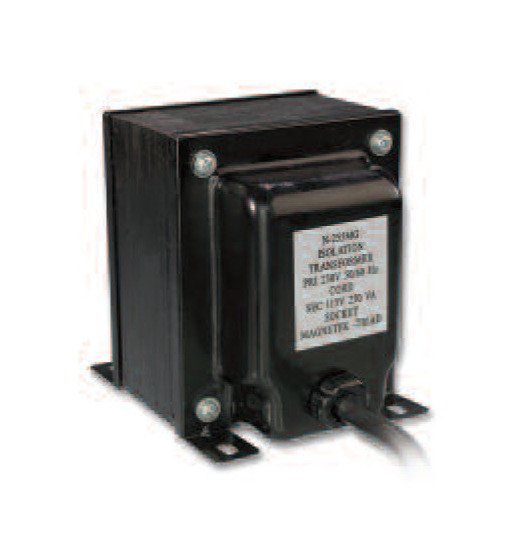

Our Medical Grade Isolation Power Transformers are meticulously designed to isolate equipment from direct power line connections, ensuring safety and compliance with today's medical equipment standards. These transformers feature nonconcentrically wound coils, separate primary and secondary windings, and a resettable circuit breaker for protection against overloads and short circuits. With UL-listed components and high-voltage testing, they offer reliable performance for critical medical applications.
Product Specifications
Note Note
With ground wire
Specifications Case Type
M
Specifications Connections
6' Cord, Plug & Socket
Specifications Depth D
6 1/4 in
Specifications Height H
5 5/16 in
Specifications Mounting Depth
5 1/8 in
Specifications Mounting Hole Size
1/2 x 1/4 in
Specifications Mounting Width
3 1/2 in
Specifications Output Wattage Va Rating
500 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
230 V
Specifications Secondary Current
4.350 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
23.8 lb
Specifications Width W
4 1/2 in
Technical Notes Technical Notes
Line cord, plug and receptacle are U.L. listed and verified to meet federal specifications.Connections are by leads, plugs and sockets.Hi-pot tested at 1,500 VRMS.
