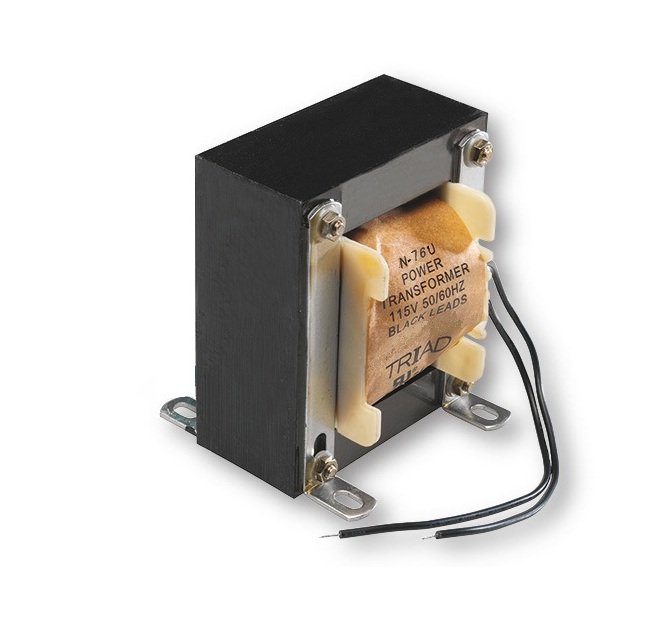

Medical Grade Isolation Power Transformers
Medical Grade Isolation Power Transformers
SKU:POW-a16310
Ensure safety and reliability with our Medical Grade Isolation Power Transformers for low leakage current requirements in medical equipment.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Medical Grade Isolation Power Transformers
$89.99
Quantity: 1
Claim Your Seller Account
Medical Grade Isolation Power Transformers
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Isolation Power Transformers are meticulously designed to meet the stringent low leakage current requirements of medical equipment. With nonconcentrically wound coils and primary-secondary isolation, these hospital-type transformers ensure utmost safety. Equipped with a resettable circuit breaker, they offer reliable protection against overload and short circuit conditions.
Product Specifications
Note Note
Unit does not include static shield
Specifications Case Type
U
Specifications Connections
Leads
Specifications Depth D
3 in
Specifications Height H
3 7/16 in
Specifications Mounting Depth
2 1/2 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
2 1/4 in
Specifications Output Wattage Va Rating
100 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
0.860 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
4.00 lb
Specifications Width W
2 13/16 in
Technical Notes Technical Notes
Line cord, plug and receptacle are U.L. listed and verified to meet federal specifications.Connections are by leads, plugs and sockets.Hi-pot tested at 1,500 VRMS.
