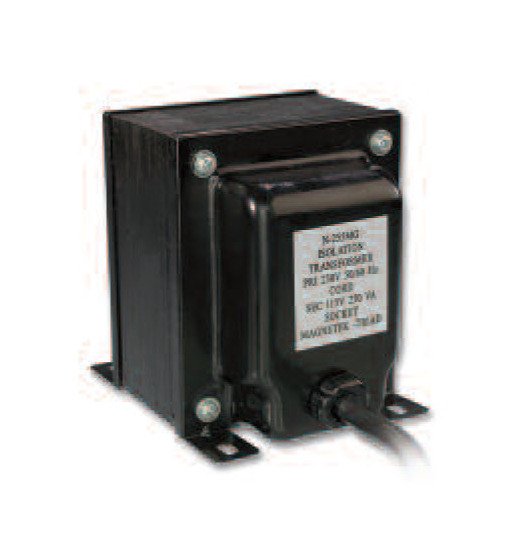

Medical Grade Isolation Power Transformers
Medical Grade Isolation Power Transformers
SKU:POW-8fca31
Isolate equipment safely with our Medical Grade Power Transformers. Designed for medical settings to meet strict leakage current requirements. Essential protection for sensitive equipment.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Medical Grade Isolation Power Transformers
$299.99
Quantity: 1
Claim Your Seller Account
Medical Grade Isolation Power Transformers
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Medical Grade Isolation Power Transformers provide essential isolation for equipment, meeting low leakage current requirements for medical settings. Designed with nonconcentrically wound coils, these transformers prevent electrical connection between primary and secondary windings. Features include a resettable circuit breaker for overload protection. Ideal for hospitals, laboratories, and sensitive equipment applications.
Product Specifications
Specifications Case Type
M
Specifications Connections
6' Cord, Plug & Socket
Specifications Depth D
7 1/8 in
Specifications Height H
5 5/16 in
Specifications Mounting Depth
6 in
Specifications Mounting Hole Size
1/2 x 1/4 in
Specifications Mounting Width
3 1/2 in
Specifications Output Wattage Va Rating
1,000 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
8.700 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
31.00 lb
Specifications Width W
4 1/2 in
Technical Notes Technical Notes
Line cord, plug and receptacle are U.L. listed and verified to meet federal specifications.Connections are by leads, plugs and sockets.Hi-pot tested at 1,500 VRMS.
