Medical Grade Isolation Transformer - 8.74 Inch Length
Medical Grade Isolation Transformer - 8.74 Inch Length
SKU:POW-b63829
Enhanced medical grade isolation transformer with toroidal construction, Class F insulation, and UL/CSA certification.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Medical Grade Isolation Transformer - 8.74 Inch Length
$899.99
Quantity: 1
Claim Your Seller Account
Medical Grade Isolation Transformer - 8.74 Inch Length
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

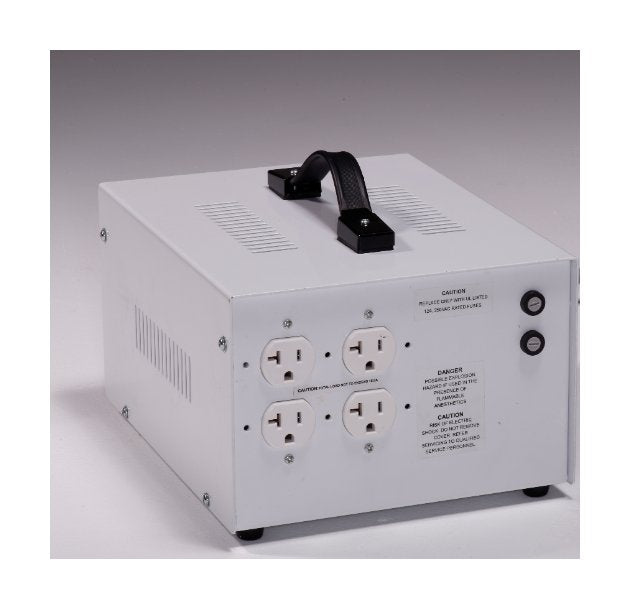

Experience superior performance with our medical grade isolation transformer featuring a toroidal construction for reduced stray fields, high efficiency, and compact size. Built with Class F insulation, it ensures safety and reliability. With a sturdy steel enclosure powder-coated in white, this transformer offers exceptional durability. Electrical specifications include maximum power of 2400 V·A, input voltage of 240V, and output voltage of 120V, meeting stringent industry standards for medical applications. UL and CSA certified, this transformer guarantees compliance with strict safety measures.
Product Specifications
Connections Input Connections
11 ft. Medical Grade Power Cord with NEMA 6-20P Plug.
Connections Output Connections
Duplex Receptacle. NEMA 5-20R.
Electrical Specifications At 25 Degree Celsius C Temperature Alt
1500 V
Electrical Specifications At 25 Degree Celsius C Temperature Fre
50 Hz | 60 Hz
Electrical Specifications At 25 Degree Celsius C Temperature Fus

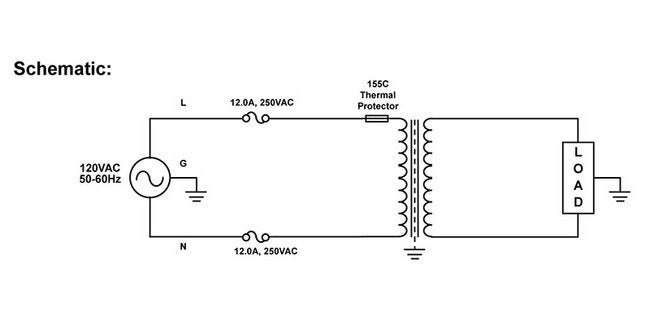

Replace only with 12.0 A, 250 VAC, Slow Blow, UL Listed Fuses.
Electrical Specifications At 25 Degree Celsius C Temperature Inp
240 V
Electrical Specifications At 25 Degree Celsius C Temperature Lea
Less Than 50 µA
Electrical Specifications At 25 Degree Celsius C Temperature Max
2400 V·A
Electrical Specifications At 25 Degree Celsius C Temperature Not
Alternating Current (AC) Output Voltage (Receptacle) at Maximum 16.66 A.
Electrical Specifications At 25 Degree Celsius C Temperature Ope
Not to Exceed 60 ºC
Electrical Specifications At 25 Degree Celsius C Temperature Out
120 V
Electrical Specifications At 25 Degree Celsius C Temperature Typ
10 µA
Note Note
Medical isolation transformer box is certified to UL 60601-1, 2nd edition medical standard and CSA-C22.2.No. 601.1M90, 2005UL: (E352717), UL60601-1, 2nd edition and CAN/CSA-C22.2 No. 601.1M90, 2005Not for use in life critical application.
Specifications Enclosure Color
White
Specifications Enclosure Finish
Powder Coated
Specifications Enclosure Material
Steel
Specifications Height

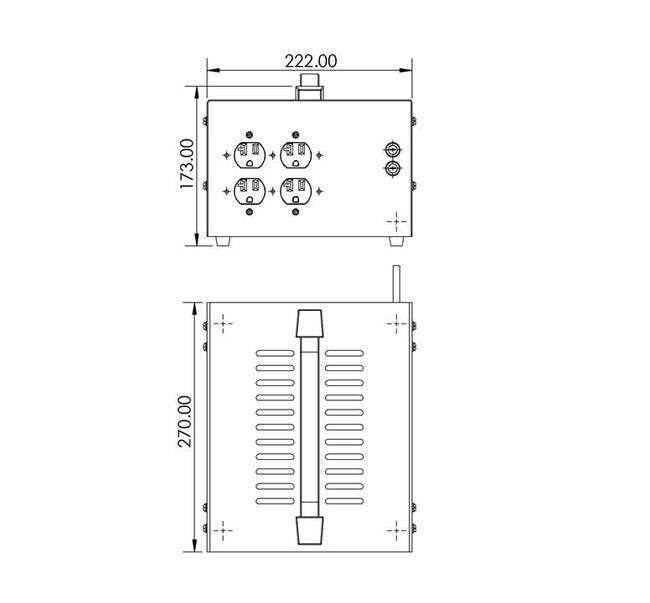

6.82 in | 173 mm
Specifications Industry Standards
CSA | cULus Listed | RoHS 2015/863/EU
Specifications Insulation Class
Class F (155º)
Specifications Length
8.74 in | 222 mm
Specifications Mounting
Rubber Feet for Horizontal Mounting.
Specifications Safety
Medical
Specifications Warranty
5 years
Specifications Weight
42.5 kg
Specifications Width
10.63 in | 270 mm
